Pressure Sensor: Removal
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Remove the coupling assembly.
(Refer to 4 Wheel Drive (4WD) System - "DIRECT ELECTRO HYDRAULIC ACTUATOR COUPLING ")

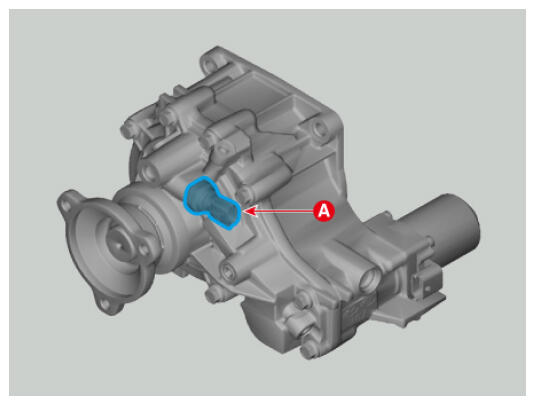

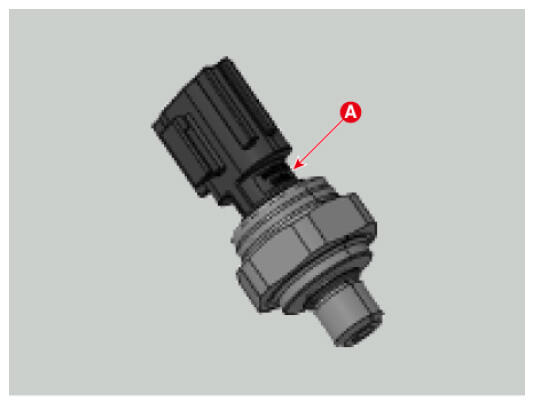

- Remove the pressure sensor (A).NOTE:

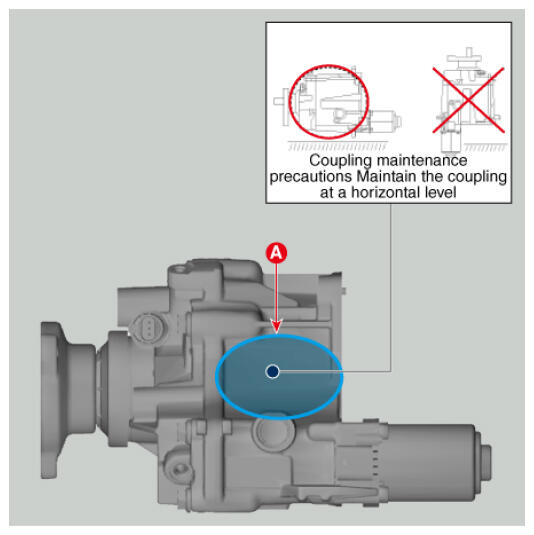

- Keep going horizontal state to prevent leaks during remove the pressure sensor.
Tightening torque :
10.8 - 14.7 N.m (1.1 - 1.5 kgf.m, 8.0 - 10.8 lb-ft)
