Components Location
Components Location

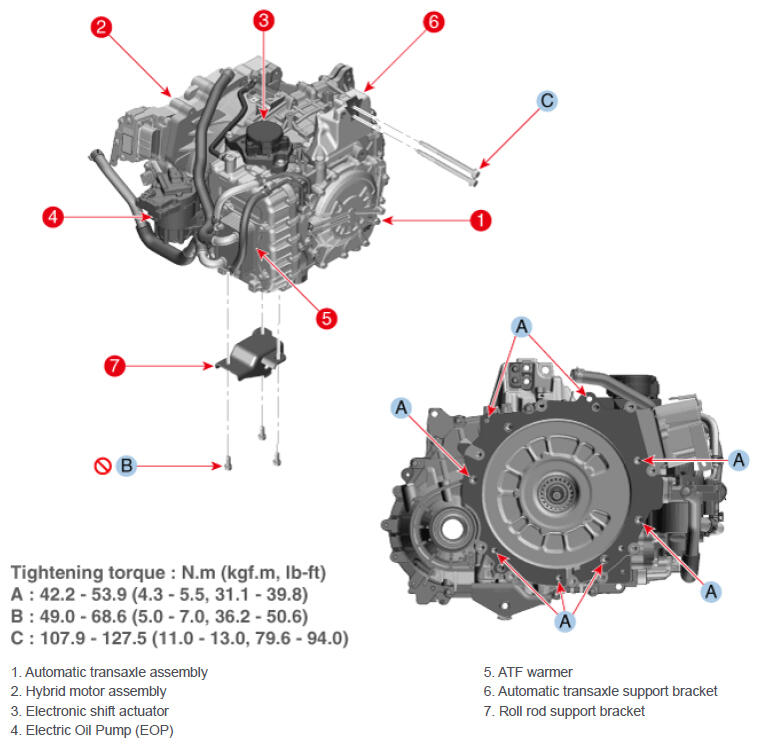

Fig 1: Automatic Transaxle Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
