Removal And Installation
- Remove the ignition coil.
(Refer to Engine Electrical System - "IGNITION COIL ")

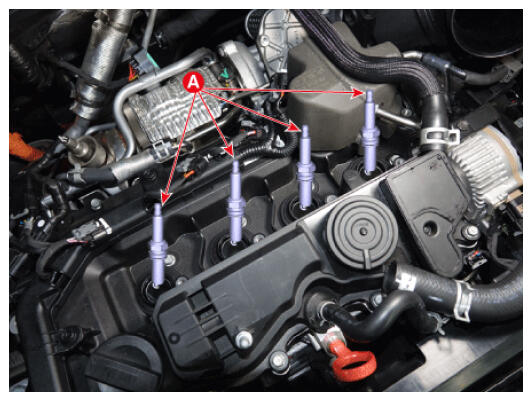

- Remove the spark plugs (A) by using a spark plug socket.
Tightening torque :
14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.1 Ib-ft)
CAUTION:- Be careful that no contaminates enter into spark plug holes.
- Install in the reverse order of removal.
