Repair Procedures: Removal

  1. Remove valve core and deflate the tire.
  2. Remove the side of the tire bead area from the wheel using tire changing machine.

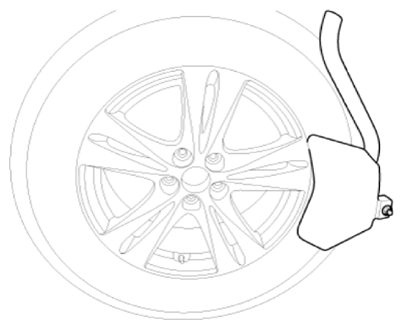

    G14775471Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
    • Avoid tire/tool contact with the valve on dismount.
    • Dismount should end near the valve.
  3. Rotate the wheel clockwise.

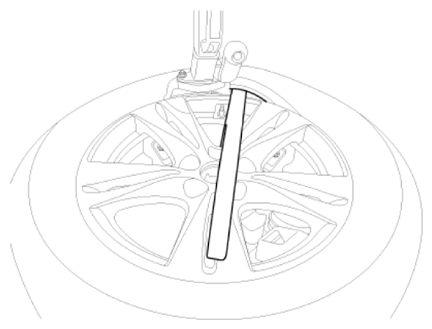

    G14775472Courtesy of HYUNDAI MOTOR AMERICA

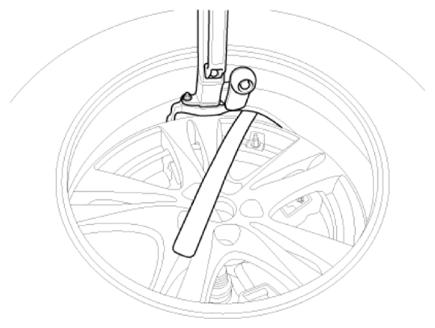

    G14775473Courtesy of HYUNDAI MOTOR AMERICA
