Repair Procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Remove the floor console upper cover.

   (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

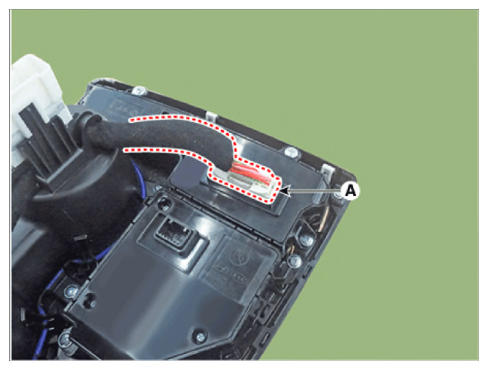

3. Disconnect the floor console upper cover switch connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

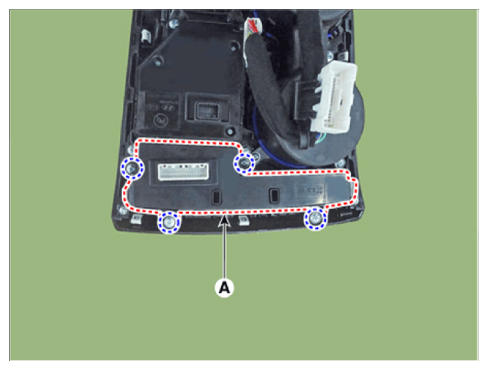

4. Remove the floor console upper cover switch (A) after loosening the mounting screw.

   Courtesy of HYUNDAI MOTOR AMERICA

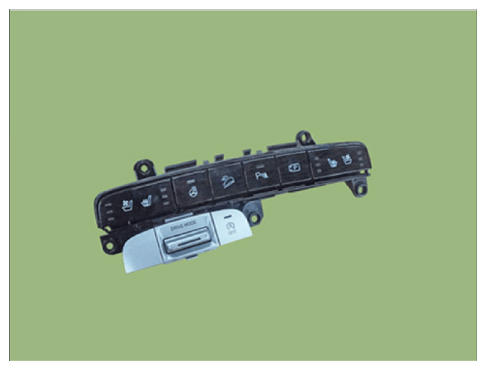

Courtesy of HYUNDAI MOTOR AMERICA

[Heated Steering Wheel Control Module (Integrated Body Control Unit (IBU))]

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Remove the glove box.

   (Refer to Body - "GLOVE BOX ")

3. Remove the heater control unit.

   (Refer to Heating, Ventilation And Air Conditioning - "HEATER CONTROL UNIT ")

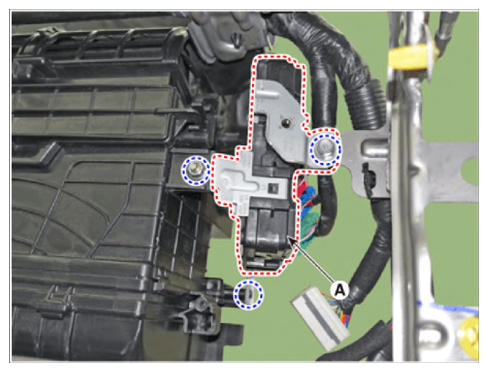

4. Remove the IBU (A) after loosening the mounting bolts and nuts.

   Courtesy of HYUNDAI MOTOR AMERICA

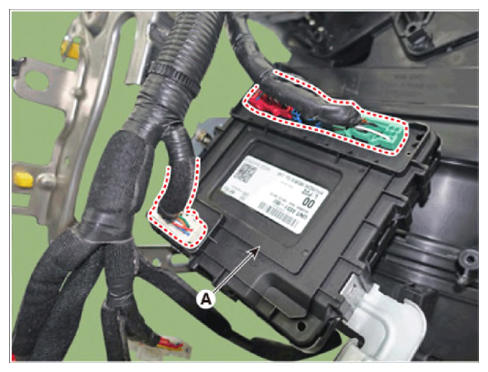

5. Remove the IBU (A) after disconnecting the connector.

   Courtesy of HYUNDAI MOTOR AMERICA
