Engine Control System Diagnosis - 2.5T (11 Of 16)
>>
DTC P064D-F0: Internal Control Module O2 Sensor Processor Performance Bank 1
>>
Troubleshooting
>>

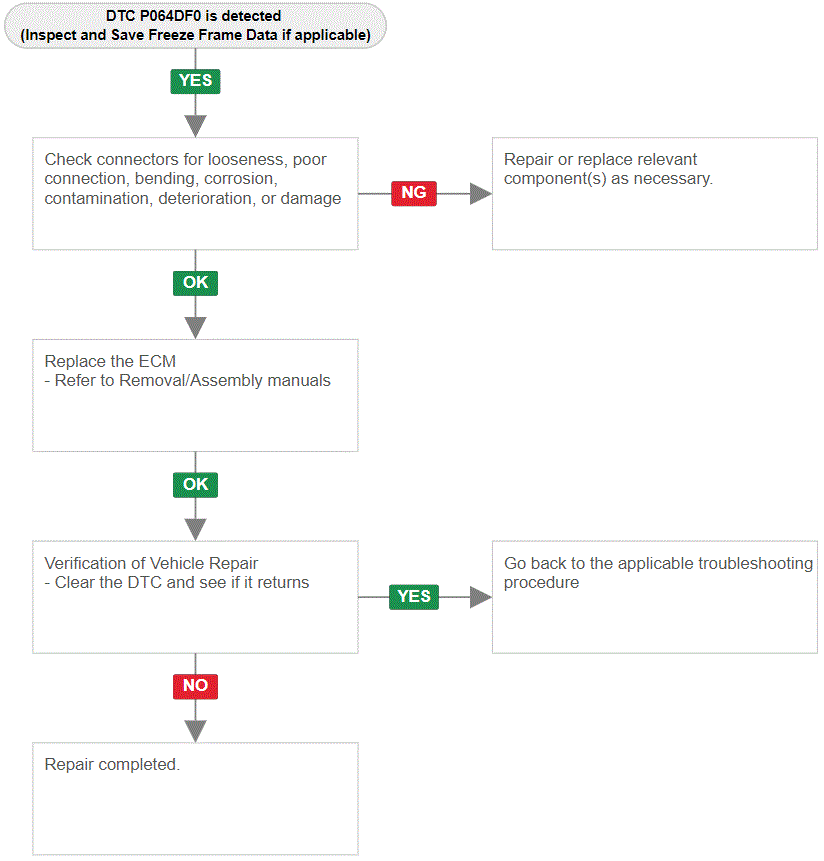

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
