Repair Procedures: Removal
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")
- Remove the front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")

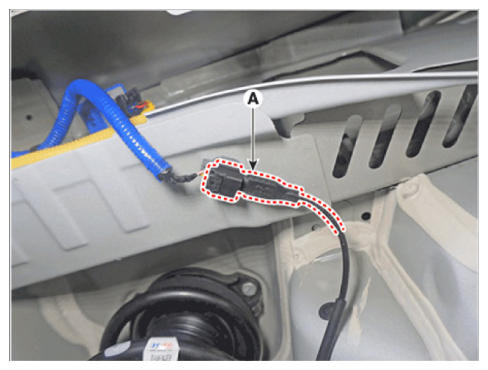

- Disconnect the front wheel speed sensor connector (A).

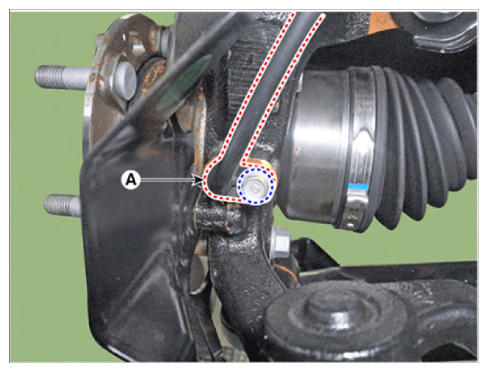

- Loosen the bolt and then disconnect the front wheel speed sensor (A).
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb - ft)
