Repair Procedures: Removal
- Disconnect the battery negative (-) terminal.

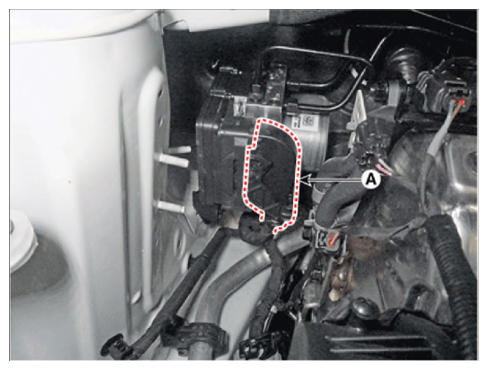

- Pull up the lock of the ESC control unit (HECU) connector and then disconnect the connector (A).

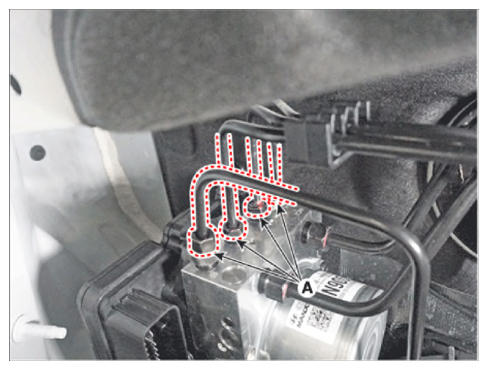

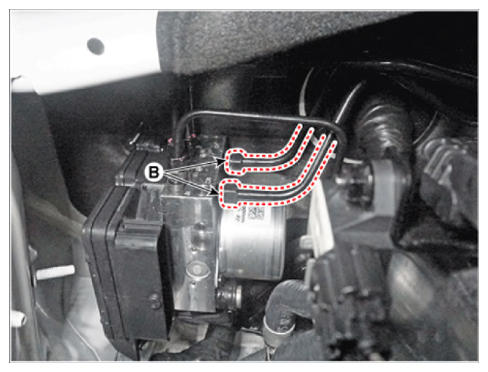

- Separate the brake tube by removing the flare nuts (A), (B) connected to the ESC control unit (HECU).
Tightening torque:
- 13.7 - 16.7 Nm (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb.ft)
- 18.6 - 22.6 Nm (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

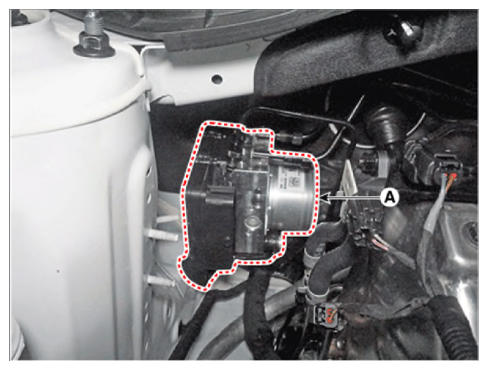

- Remove the bracket mounting nuts and remove the ESC control unit (HECU) (A) from the vehicle.
Tightening torque:
16.7 - 25.5 Nm (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb - ft)

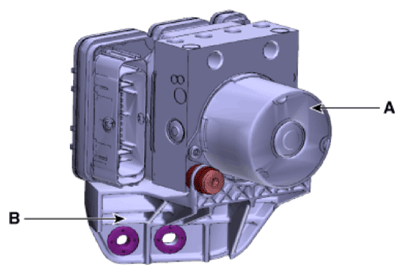

- Remove the bolts to remove the bracket (B) from the ESC control unit (HECU) (A).
