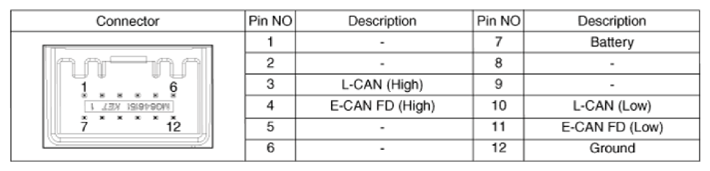

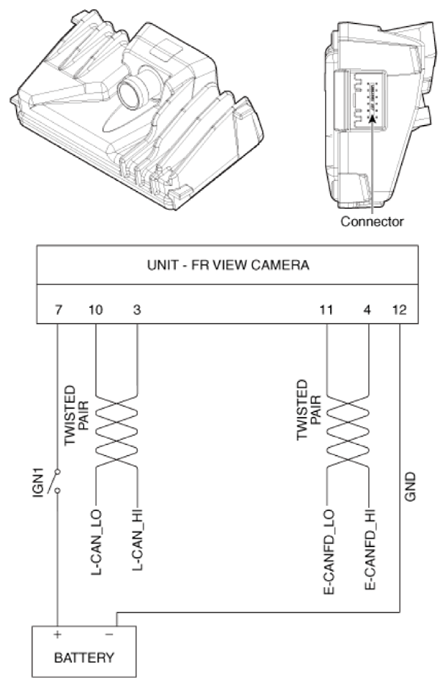

Home >> Hyundai >> 2024 >> Santa Cruz XRT >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Front View Camera System >> Front View Camera Unit >> Schematic Diagrams >> Circuit Diagram
