Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.

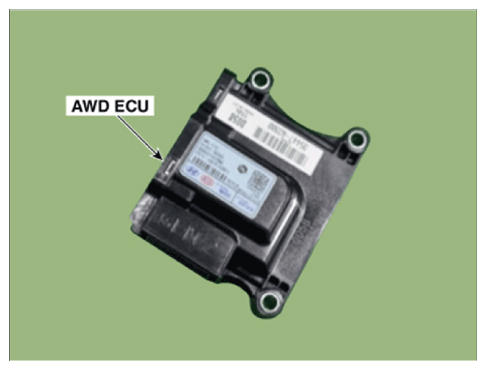

- Prior to replacing the 4WD ECU, check the 4WD ECU's clutch learning with the diagnostic tool.
(Refer to 4WD Control System - "REPAIR PROCEDURES ")
- Turn OFF ignition switch and the disconnect the negative (-) battery cable.
- Remove the luggage side trim. [Left side]
(Refer to BED TRIM ASSEMBLY

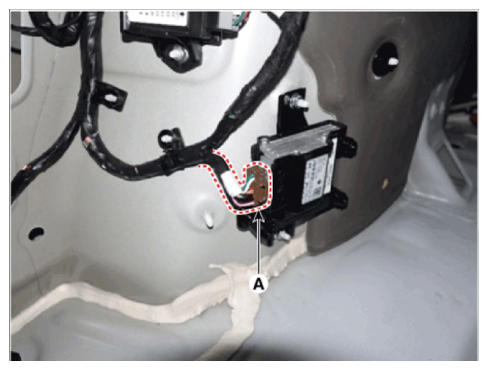

- Disconnect the 4WD ECU connector (A).

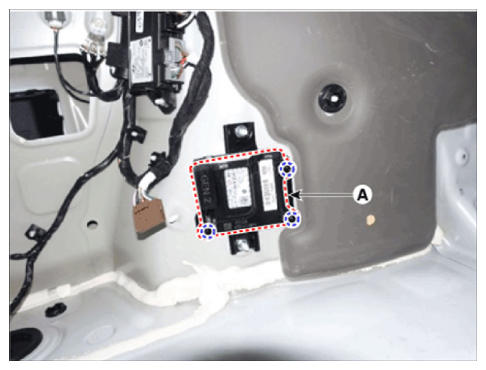

- Loosen the nuts and then removing the 4WD ECU (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
