Repair Procedures: Removal
[2WD]
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")
- Remove the rear brake caliper.
(Refer to Brake System - "REAR DISC BRAKE ")

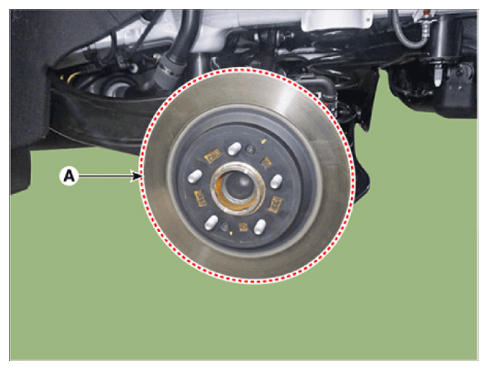

- Loosen the screw and the remove the rear break disc.
Tightening torque:
4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb - ft)

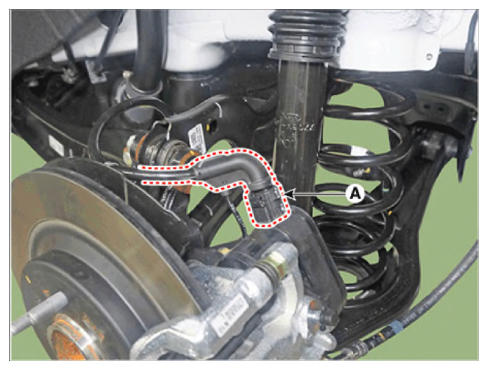

- Disconnect the rear wheel speed sensor connector (A).

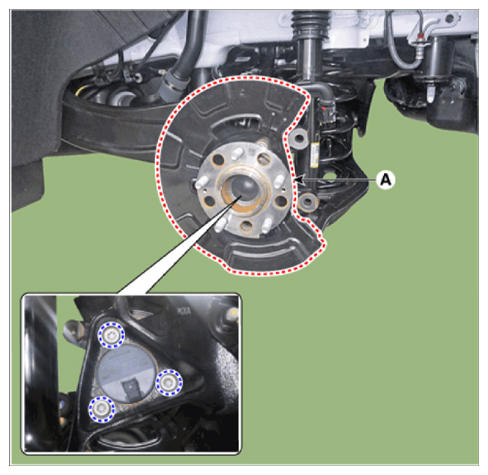

- Loosen the bearing mounting bolts and then remove the hub bearing assembly & dust cover (A).
Tightening torque:
88.2 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)
[4WD]
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")
- Remove the rear wheel guard.
(Refer to Body - "REAR WHEEL GUARD ")

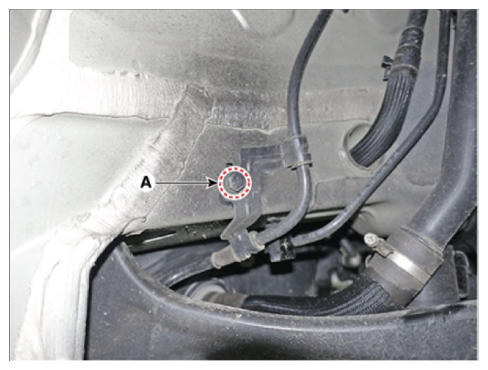

- Remove the rear wheel speed sensor cable bracket bolt (A).
Tightening torque:
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb - ft)

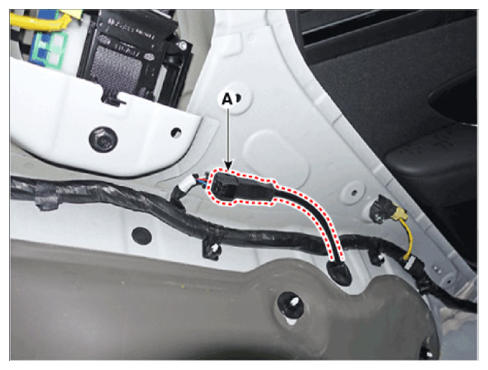

- Disconnect the rear wheel speed sensor connector (A).

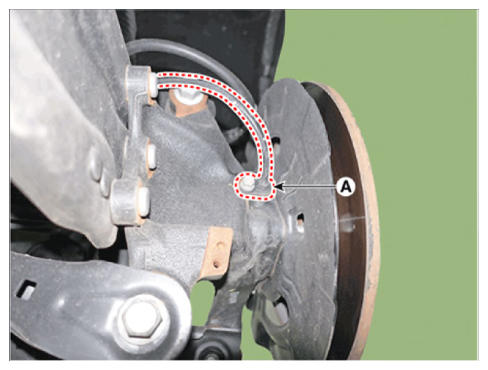

- Disconnect the EPB actuator connector (A).

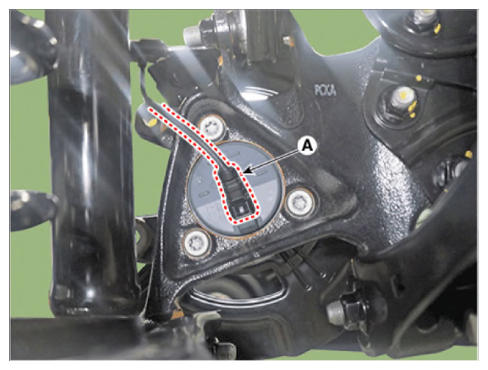

- Remove the bolt and then disconnect the rear wheel speed sensor (A).
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb - ft)
