Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

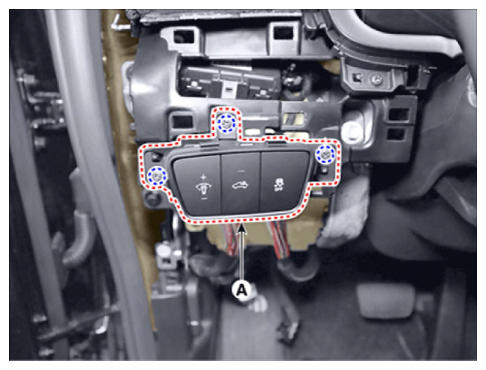

  3. Remove the screws and remove the ESC OFF switch (A).
    G14775828Courtesy of HYUNDAI MOTOR AMERICA

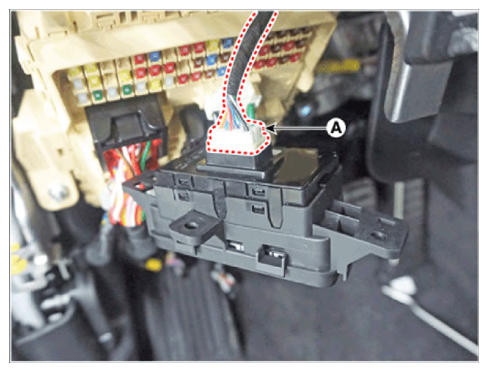

  4. Remove the ESC OFF switch connector (A) by pressing the locking pin.
    G14775829Courtesy of HYUNDAI MOTOR AMERICA
