Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Remove the floor console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

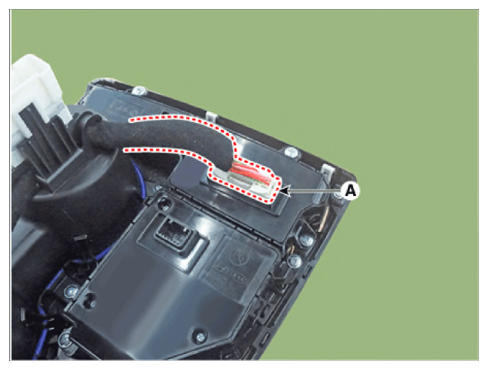

  3. Disconnect the floor console upper cover switch connector (A).
    G14775857Courtesy of HYUNDAI MOTOR AMERICA

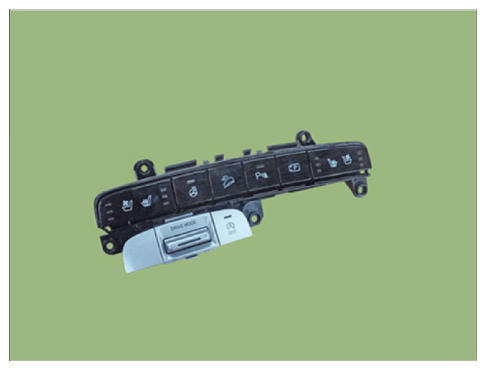

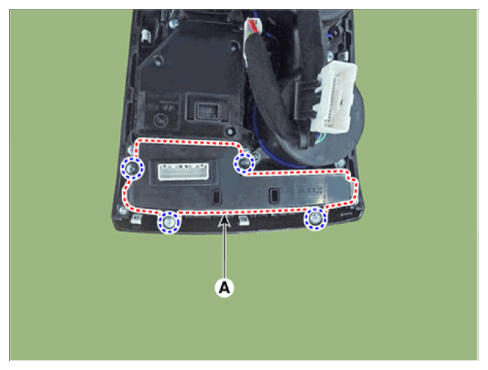

  4. Remove the screws and remove the floor console upper cover switch (A).
    G14775858Courtesy of HYUNDAI MOTOR AMERICA
    G14775859Courtesy of HYUNDAI MOTOR AMERICA
