ESC Operation Mode: Notes

  1. STEP 1

    The ESC analyzes the intention of the driver.

    G14775798Courtesy of HYUNDAI MOTOR AMERICA
  2. STEP 2

    It analyzes the movement of the ESC vehicle.

    G14775799Courtesy of HYUNDAI MOTOR AMERICA

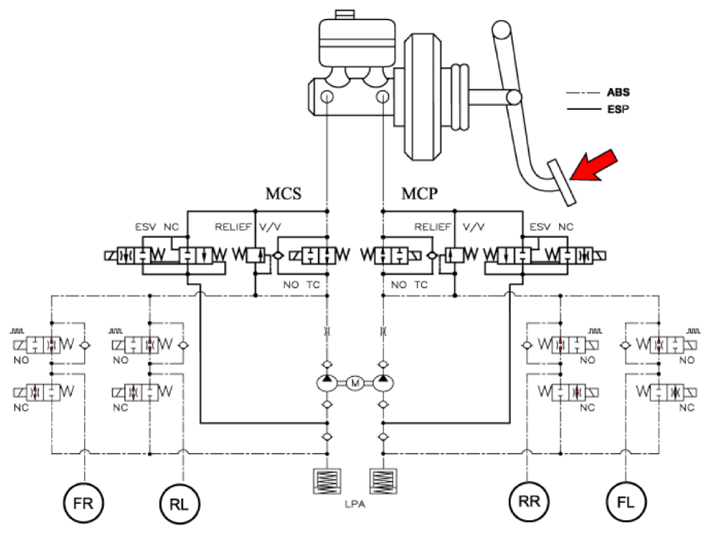

  3. STEP 3

    The HECU calculates the required strategy, then actuates the appropriate valves and sends torque control requests via CAN to maintain vehicle stability.

G14775800Courtesy of HYUNDAI MOTOR AMERICA
