Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "BATTERY ")

  2. Remove the front left wheel guide.

    (Refer to Body - "FRONT WHEEL GUARD ")

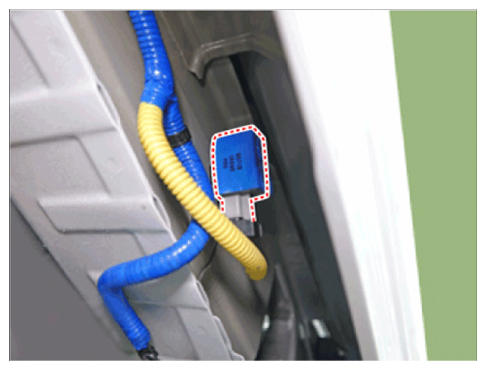

  3. Disconnect the connector, then remove the buzzer (A).
    G14776478Courtesy of HYUNDAI MOTOR AMERICA
