Repair Procedures: Replacement
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
- Separate the front seat belt buckle wiring (A).

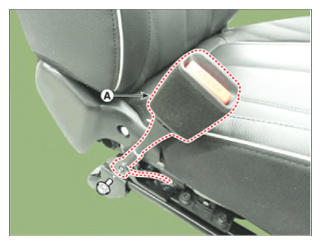

- Loosen the mounting bolt and remove the front seat belt buckle (A).
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
- To install, reverse removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
