LEMON Manuals: Even more car manuals for everyone
Home >> Hyundai >> 2024 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (4 Of 9) >> DTC P0300-00: Random/Multiple Cylinder Misfire Detected >> Troubleshooting >> Diagnostic Flowchart

Diagnostic Flowchart

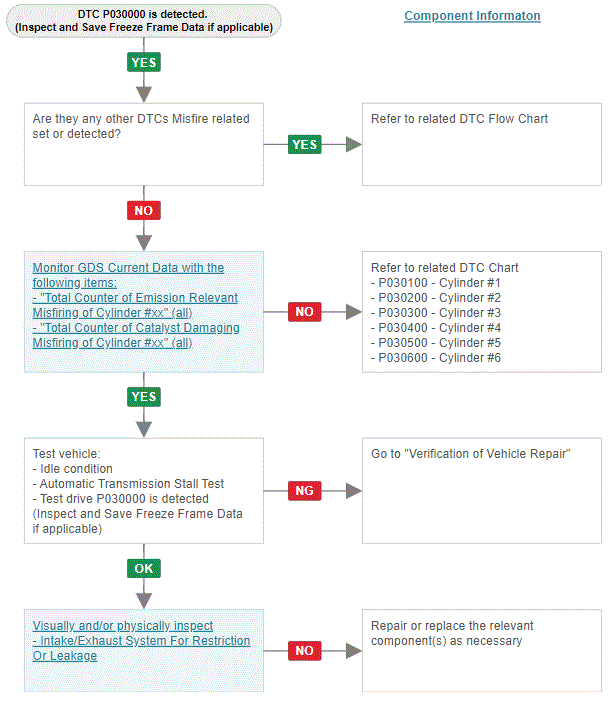

Fig 1: 1 Of 3
G15501021Courtesy of HYUNDAI MOTOR AMERICA

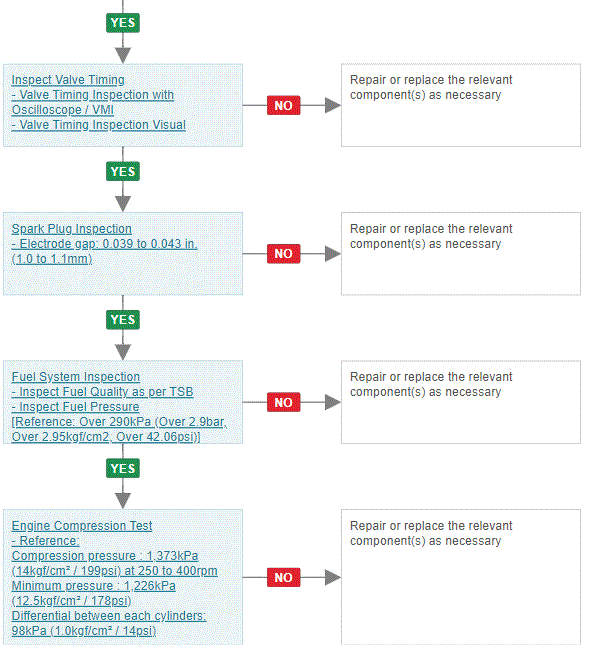

Fig 2: 2 Of 3
G00637326Courtesy of HYUNDAI MOTOR AMERICA

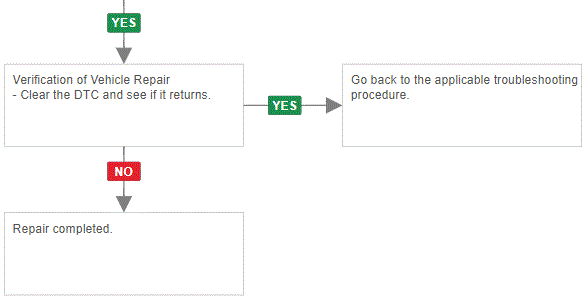

Fig 3: 3 Of 3
G00637327Courtesy of HYUNDAI MOTOR AMERICA
