Diagnostic Flowchart

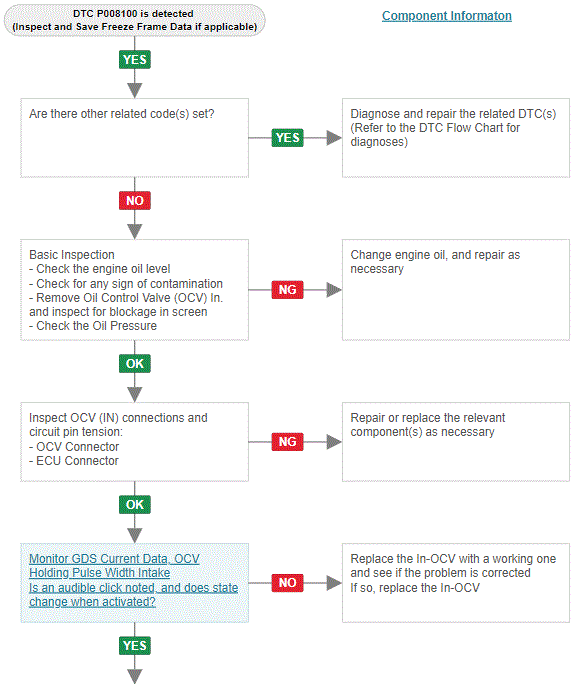

Fig 1: 1 Of 2
G15500854Courtesy of HYUNDAI MOTOR AMERICA

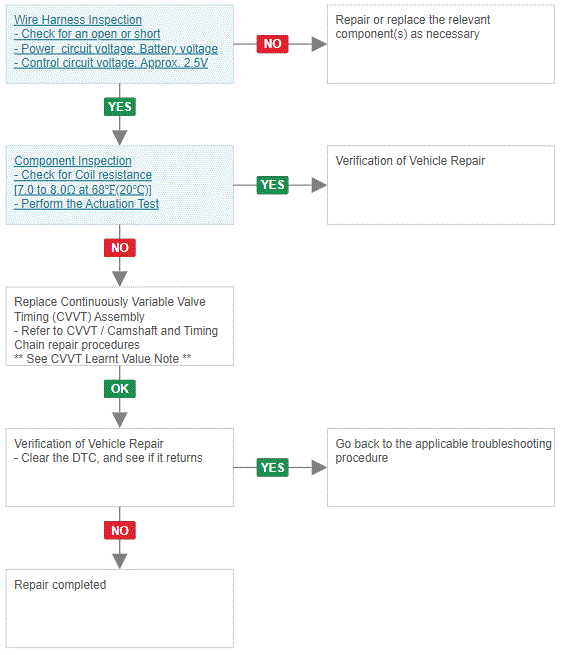

Fig 2: 2 Of 2
G00635167Courtesy of HYUNDAI MOTOR AMERICA
