Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- In the case of G 3.5 MPI, G3.8 GDI vehicle, removing the variable intake solenoid (VIS) actuator. (Refer to Engine Mechanical System - "VARIABLE INTAKE SOLENOID (VIS) ACTUATOR ")

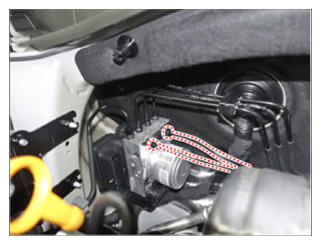

- Pull up the lock of the HECU connector and then disconnect the connector (A).

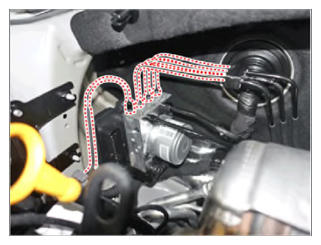

- Separate the brake tubes from the HECU by unlocking the nuts (6-ea) couter clockwise using a spanner.
Tightening torque:
13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb-ft)
Tightening torque:
18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

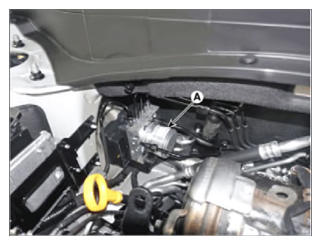

- Loosen the ESC control module mounting nut (A) and then remove the ESC control module from the vehicle.
Tightening torque:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

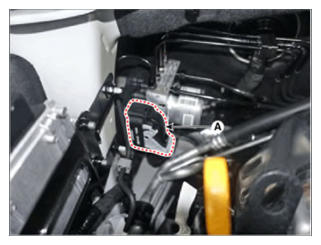

- Separate the bracket (B) after remove the mounting bolt from the HECU (A).
