Repair Procedures: Adjustment

Perform diagnostic procedure by using diagnostic device as shown below:

1. Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2. Select the "vehicle model" and "ESC/ESC" on diagnostic tool vehicle selection screen, then select OK.

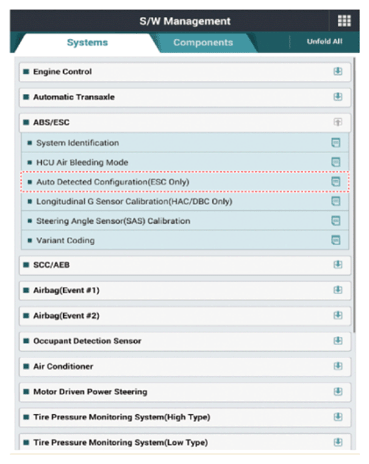

[Variant Code Reset]

Courtesy of HYUNDAI MOTOR AMERICA

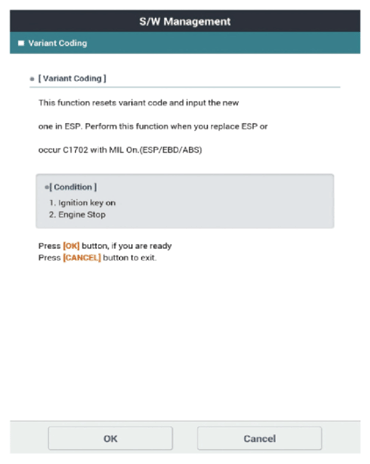

[Variant Coding]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

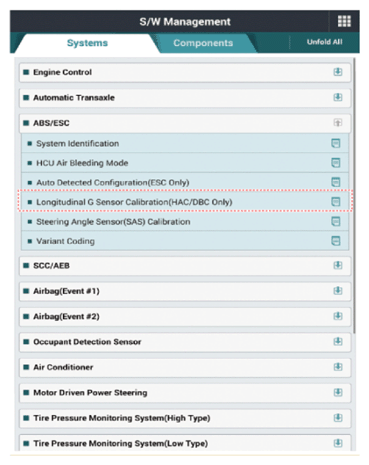

[Longitudinal G Sensor Calibration]

Courtesy of HYUNDAI MOTOR AMERICA

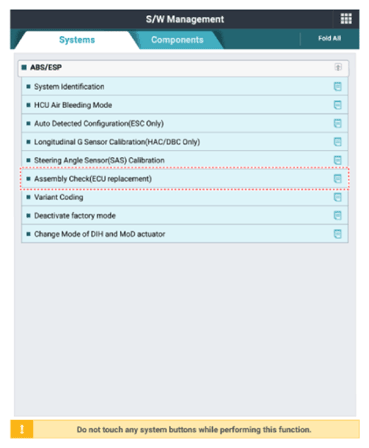

Assembly Check (ECU replacement)

Courtesy of HYUNDAI MOTOR AMERICA
