Repair Procedures: Removal

  1. Remove the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Remove the IMS unit after removing the screws.
    G15473321Courtesy of HYUNDAI MOTOR AMERICA

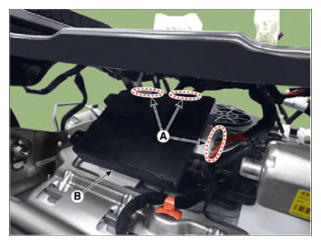

  4. Disconnect the IMS unit connectors (A) and remove the IMS unit (B).
    G15473322Courtesy of HYUNDAI MOTOR AMERICA
