Shift Cable: Removal
- Disconnect the negative (-) battery cable.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the ECM.
(Refer to Engine Control/Fuel System - ECM - "REMOVAL ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - Battery - "REMOVAL ")

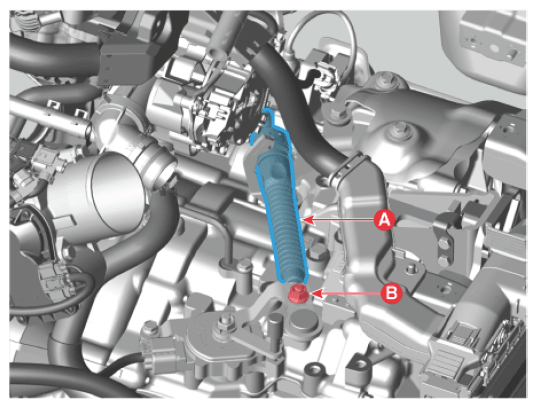

- Remove the shift cable (A) from the cable bracket, after removing the nut (B).

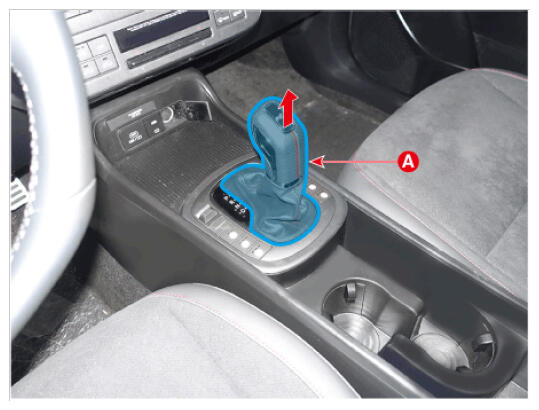

- Remove the shift lever knob & boots (A) and pull both up.
- Remove the floor console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

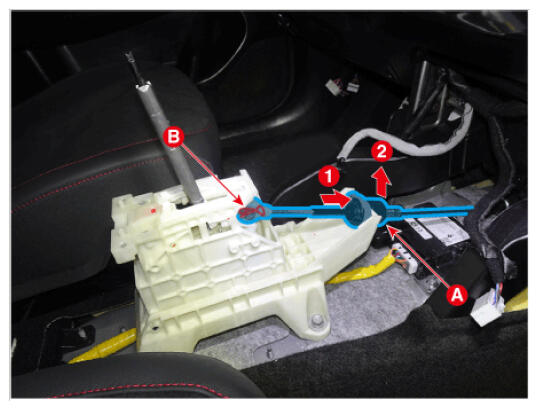

- Remove the shift cable (A) after removing the snap pin (B).

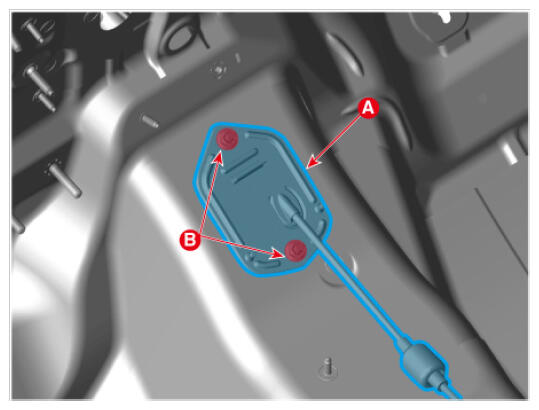

- Remove the retainer (A) by removing the nuts (B).
- Remove the shift cable (A) from the vehicle.
