IVT Control System - SBW
>>
Parking Sprag
>>
Components And Components Location
Components And Components Location

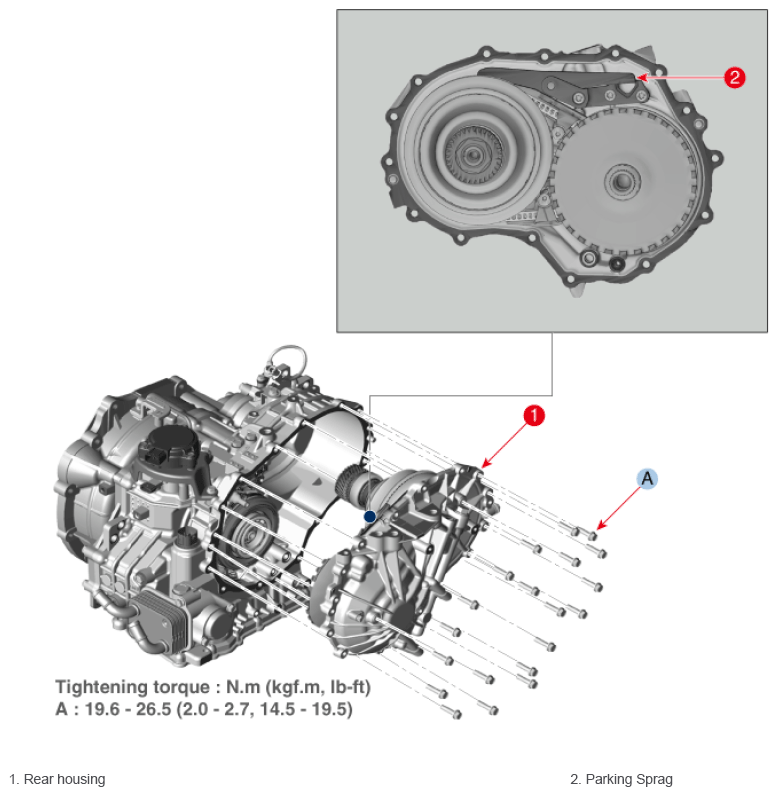

Fig 1: Parking Sprag Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
