Removal And Installation
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "1.6L 12V BATTERY ")

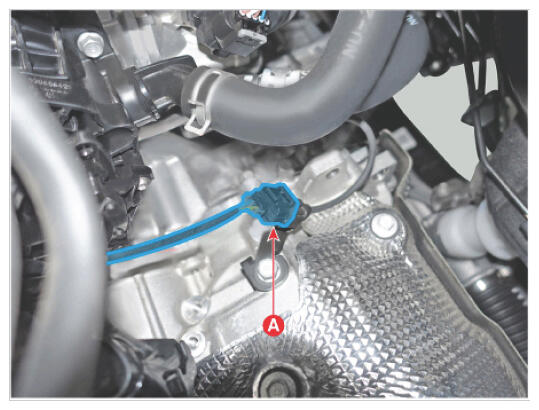

- Disconnect the driven pulley speed sensor connector (A).

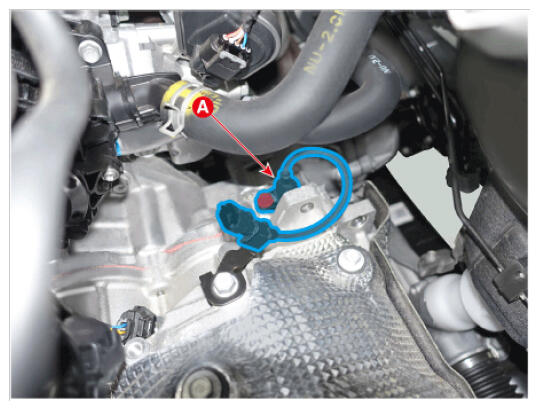

- Remove the driven pulley speed sensor (A) after removing the bolt.
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Install in the reverse order of removal.
