MDPS Power Pack Assembly: Installation
- Install in the reverse order of removal.NOTE:
- Tighten the bolts and nuts to the specified torque.
- Dropping the power pack assembly can cause internal damage. In this case, use it after inspection.

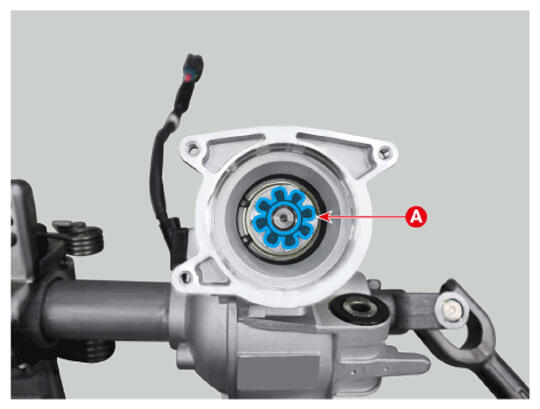

- When installing the power pack, be sure to install it after checking whether the coupling (A) is assembled.

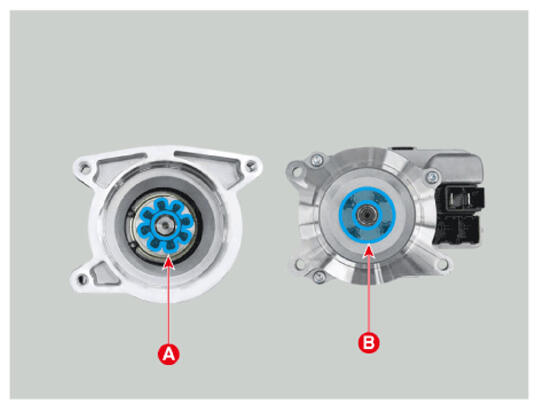

- Assemble by aligning the directions of (A), (B)
- Perform the MDPS tuning specification setting and select regional specifications.
(Refer to MDPS Column And Housing - "ADJUSTMENT ")
- Perform the Steering Angle Sensor (SAS) setting and Steering angle torque zero setting.
(Refer to MDPS Column And Housing - "ADJUSTMENT ")
- Erase the DTC code.NOTE:
- Before erasing the DTC code, check for any fault codes.
- If the failure continues, replace the MDPS power pack assembly and check the failure.
- Perform the MDPS performance test.
(Refer to Motor Driven Power Steering - "TROUBLESHOOTING ")
