Removal And Installation
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing using a remover, be careful not to damage the parts.
- Take care not to bend or scratch the trim and panels.
- Remove the center pillar upper trim.
(Refer to Interior Trim - "CENTER PILLAR UPPER TRIM ")

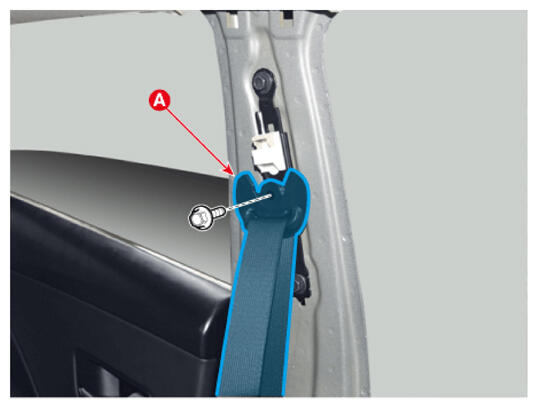

- Remove the front seat belt upper anchor (A), after removing the bolts.
Tightening torque :
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

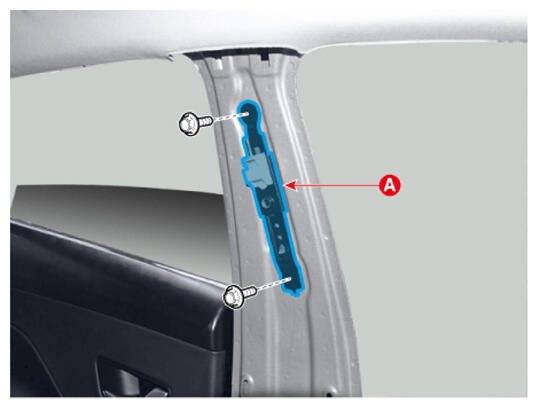

- Remove the height adjust (A), after removing the bolts.
Tightening torque :
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)
- Install in the reverse order of removal.
