Wireless Power Charger System Major Functions

1. Activation method
   1. Close all doors of the car.
   2. Switch vehicle power to ACC or IG ON.
   3. Place the wireless charging-enabled mobile phone on the tray.
2. Charging status display

   Mode	Charging LED display		Remarks
   Stand by for charging	LED turned OFF	Courtesy of HYUNDAI MOTOR AMERICA
   Charging in process	Amber LED turned ON	Courtesy of HYUNDAI MOTOR AMERICA
   Charging completed	Green LED turned ON	Courtesy of HYUNDAI MOTOR AMERICA
   Charging error	Amber LED blinks	Courtesy of HYUNDAI MOTOR AMERICA

1. Activation method
   1. Key OFF while the mobile phone is being charged.
   2. Checks if the mobile phone is placed on the wireless charging unit.

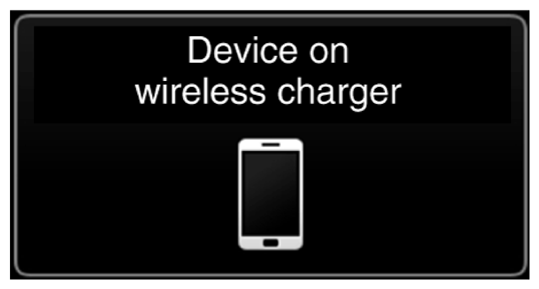

   3. Alert message for contact with mobile phone is displayed on the instrument panel (for about 4 - 5 seconds).

Courtesy of HYUNDAI MOTOR AMERICA

1. Activation method
   1. If the thermistor temperature inside the wireless charging module rises above a certain level (158°F (70°C)), charging will stop to protect the mobile phone battery.

      Information

      • The amber LED of the charging display lamp blinks 10 times for 10 seconds, and then it is turned off for 50 seconds (total 60 seconds).
      • The process is repeated for every 60 seconds.
   2. If the thermistor temperature falls below a certain level (149°F (65°C)), charging will restart.

      Information

      When the charging function is restarted, the amber LED of the charging display lamp will be turned on.

1. Charging will be stopped if there is a coin or other metallic object between the wireless charging unit and the mobile phone.

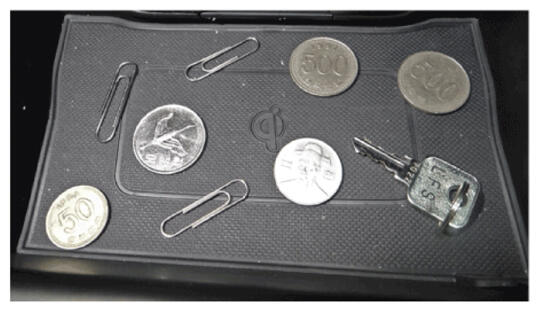

   [Foreign matter]

   Courtesy of HYUNDAI MOTOR AMERICA

   Information

   • Foreign matter: All metallic objects such as coins, clips, and precious metals
   • The amber LED of the charging display lamp blinks 10 times for 10 seconds, and then it is turned off for 50 seconds (total 60 seconds).
   • The process is repeated for every 60 seconds.
   CAUTION:

   • Be careful as touching the foreign matter by hand may cause burns.
2. After the system has detected foreign matter and stopped charging the mobile phone, the charging will resume in about 60 seconds once the foreign matter has been removed.

   Information

   When the charging function is restarted, the amber LED of the charging display lamp will be turned on.

This function prevents interference between the wireless charging frequency and smart key unit frequency band.

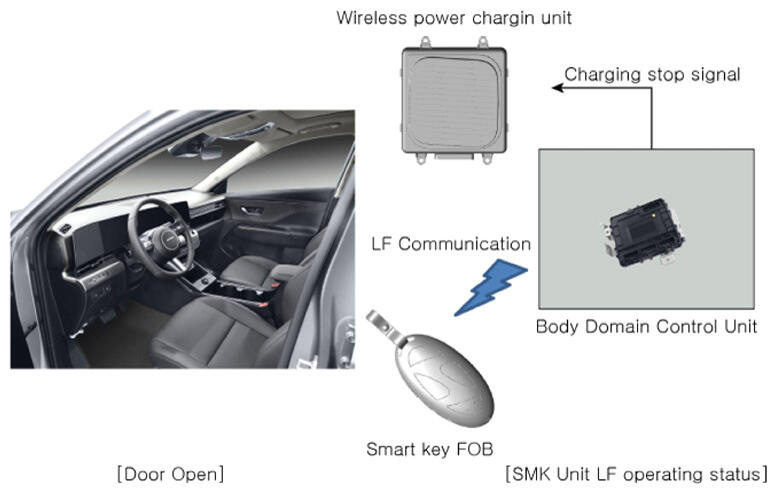

1. Wireless charging is stopped when the door is open or the BDC unit is in LF mode (searching for smart key).

   e.g. Wireless charging function is stopped if the driver carries the smart key out of the vehicle during IG ON.

   Courtesy of HYUNDAI MOTOR AMERICA

   Information

   Charging will stop and the amber LED of the charging display lamp will go out.

2. It will return to normal operating status when the LF mode of the BDC unit is completed.
