Rear Wheel Speed Sensor: Inspection

Measure the output voltage between the terminal of the wheel speed sensor and the body ground.

NOTE:

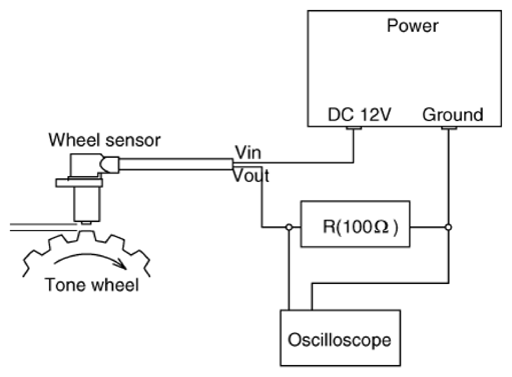

In order to protect the wheel speed sensor, when measuring output voltage, a 100 Ω resistor must be used as shown below:

G16547075

Courtesy of HYUNDAI MOTOR AMERICA

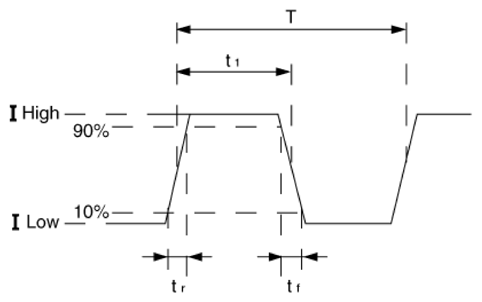

Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown below.

Courtesy of HYUNDAI MOTOR AMERICA
- I low: 5.88 - 8.4 mA
- I middle: 11.76 - 16.8 mA (SPAS)
- I high: 11.76 - 16.8 mA (N-SPAS), 23.52 - 33.6 mA (SPAS)
- Frequency range: 0 - 2, 500 Hz
