Removal And Installation
- Disconnect the battery (-) terminal.
- Remove the front wheel and tires. (Refer to Suspension System - "WHEEL ")
- Remove the front wheel guard.
(Refer to Body (Interior/Exterior/Electrical) - "WHEEL GUARD ")

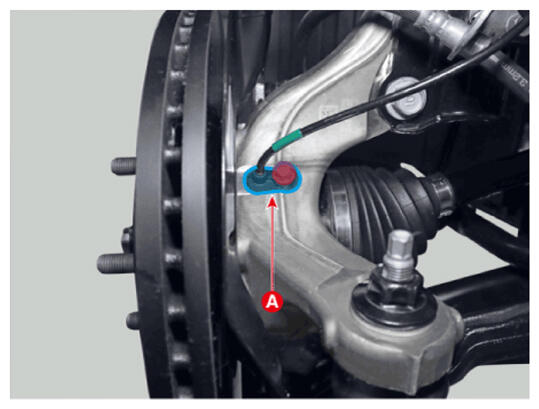

- Disconnect the front wheel speed sensor (A) after removing the bolt.
Tightening torque:
7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.6 lb-ft)

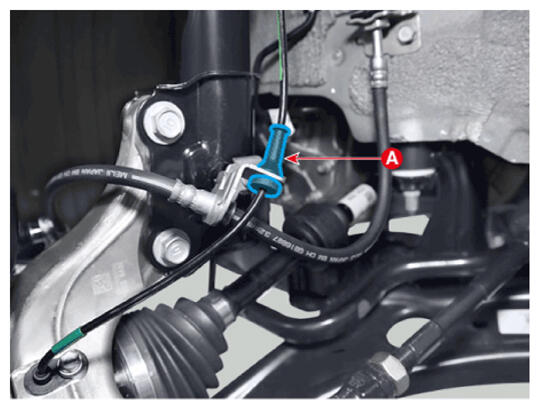

- Remove the front wheel speed sensor line grommet (A).

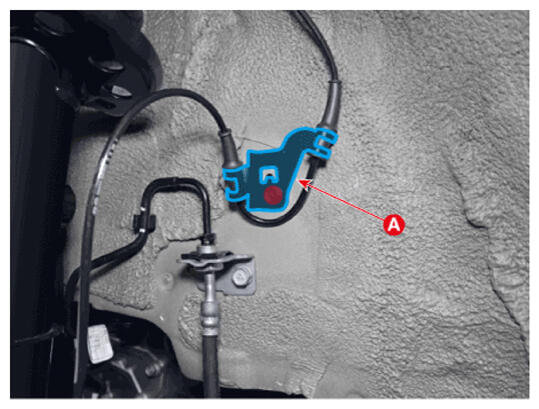

- Remove the front wheel speed sensor line bracket (A) after removing the bolt.
Tightening torque:
7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.6 lb-ft)

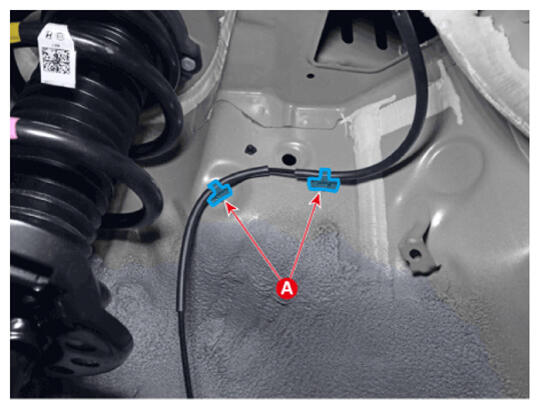

- Remove the front wheel speed sensor line clips (A).

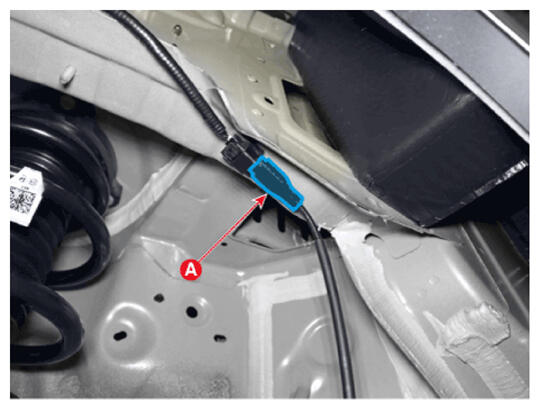

- Remove the front wheel speed sensor after disconnecting the connector (A).
- Install in the reverse order of removal.
