Function Of Safety Power Window: Notes

When the driver door power window auto-up switch is operated, safety function is activated.

1. Safety function condition

   When the force of 100N is detected (using the 10N/mm spring) while the window is rising, the window is reversed.

2. Length of window reversing (except holding the auto-up switch)

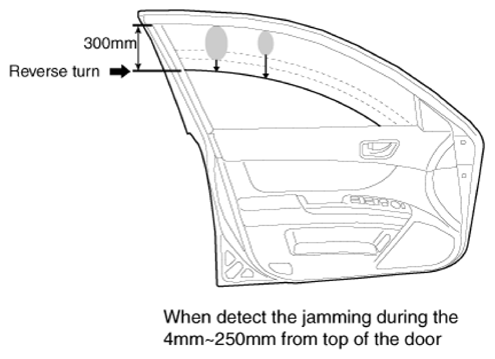

   • When jamming is detected during the 4mm - 250mm from top of the door.
   • → Window is reversed until 300mm from top of the door.

     Courtesy of HYUNDAI MOTOR AMERICA

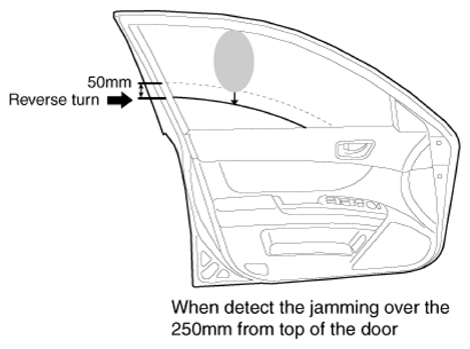

   • When detect the jamming over the 250mm from top of the door.
   • → Window is reversed until 20mm from jamming position.

   Courtesy of HYUNDAI MOTOR AMERICA

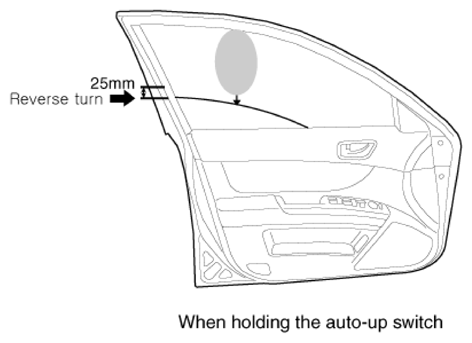

3. Length of window reversing (holding the auto-up switch)
   • When detect the jamming during holding the auto-up switch.

     → Window is reverse until 25mm from jamming position.

   • Auto-up function is not available during the 5 seconds from above condition.

     → When holding the auto-up switch, window is operated as a manual-up function. (Safety function is not activated.)

   • When holding the auto-up switch after 5 seconds from above condition.

     → Window is reverse until 25mm from jamming position.

   Courtesy of HYUNDAI MOTOR AMERICA

4. Safety function is not available area

   Safety function is not available during the 4mm from top of the door.
