 Courtesy of HYUNDAI MOTOR AMERICA
|

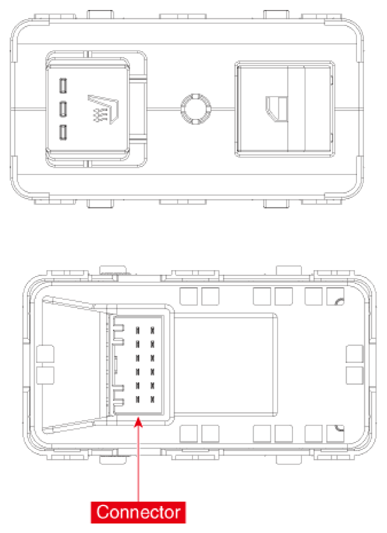

1 |
Ground |
| 2 |
Seat IND (High) |
| 3 |
Window motor (Down) |
| 4 |
Seat IND (Low) |
| 5 |
Window motor (Up) |
| 6 |
Seat heater switch |
| 7 |
Driver window signal (Down) |
| 8 |
Window EN |
| 9 |
ILL (-) |
| 10 |
Driver window signal (Up) |
| 11 |
Tail lamp ILL (+) |
| 12 |
Battery (+) |
