Smart Key Antenna (Interior 1)

  1. Disconnect the battery (-) terminal.
  2. Remove the floor console assembly

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

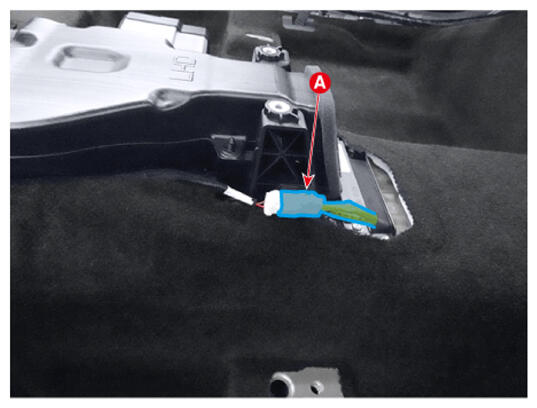

  3. Disconnect the smart key antenna connector (A).
    G16548565Courtesy of HYUNDAI MOTOR AMERICA

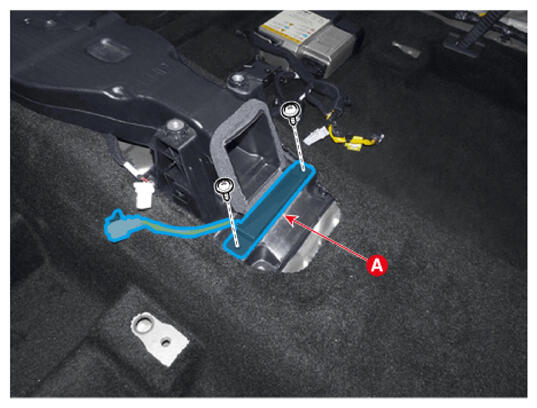

  4. Remove the smart key antenna (A), after removing the screws.
    G16548566Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
