Smart Key Antenna (Interior 3)

  1. Disconnect the 12V battery (-) terminal.

    (Refer to Vehicle Control System - " AUXILIARY BATTERY (12V)  ")

  2. Remove the rear transverse trim

    (Refer to Trunk Trim - " REAR TRANSVERSE TRIM  ")

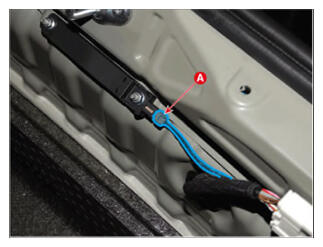

  3. Disconnect the smart key antenna connector (A).
    G16203908Courtesy of HYUNDAI MOTOR AMERICA

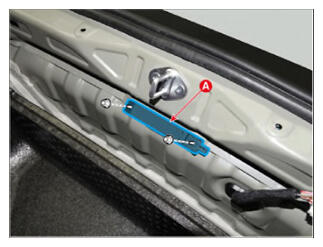

  4. Remove the smart key antenna (A), after removing the nuts.
G16203909Courtesy of HYUNDAI MOTOR AMERICA
