Smart Key Antenna (Interior 2)
- Disconnect the 12V battery (-) terminal.
(Refer to Vehicle Control System - " AUXILIARY BATTERY (12V) ")
- Remove the floor console assembly.
(Refer to Floor Console - " FLOOR CONSOLE ASSEMBLY ")

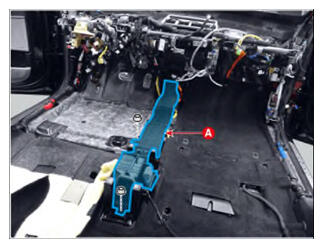

- Remove the console air duct (A), after removing the nuts.

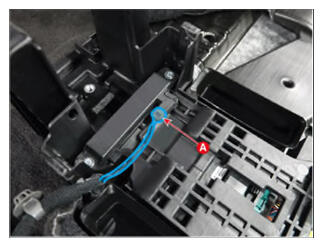

- Disconnect the smart key antenna connector (A).

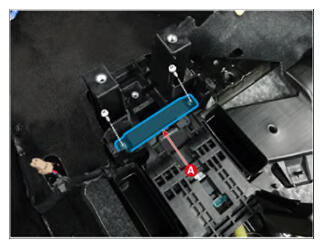

- Remove the smart key antenna (A), after removing the screws.
