Smart Key Antenna (Front Bumper)

  1. Disconnect the 12V battery (-) terminal.

    (Refer to Vehicle Control System - " AUXILIARY BATTERY (12V)  ")

  2. Remove the front bumper.

    (Refer to Front & Rear Bumper - "FRONT BUMPER ASSEMBLY ")

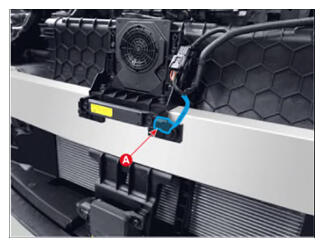

  3. Disconnect the smart key antenna connector (A).
    G16203899Courtesy of HYUNDAI MOTOR AMERICA

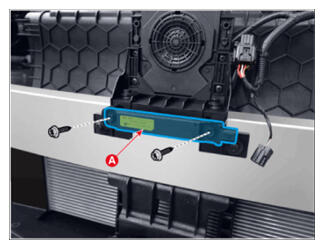

  4. Remove the smart key antenna (A), after removing the screws.
    G16203900Courtesy of HYUNDAI MOTOR AMERICA
