Data Connectivity Unit (DCU): Removal
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing using a remover, be careful not to damage the parts.
- Take care not to bend or scratch the trim and panels.
- Disconnect the 12V battery (-) terminal.
(Refer to Vehicle Control System - " AUXILIARY BATTERY (12V) ")
- Remove the glove box housing cover.
(Refer to Crash Pad - " GLOVE BOX HOUSING COVER ")

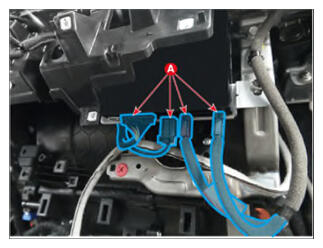

- Disconnect the data connectivity unit connector (A).

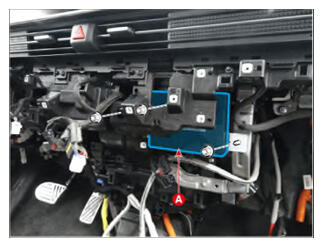

- Remove the data connectivity unit (A), after removing the nuts.
