Home >> Hyundai >> 2024 >> Elantra N Standard Trans >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle Control System >> Shift Lever >> Components And Components Location >> Components

Components And Components Location: Components

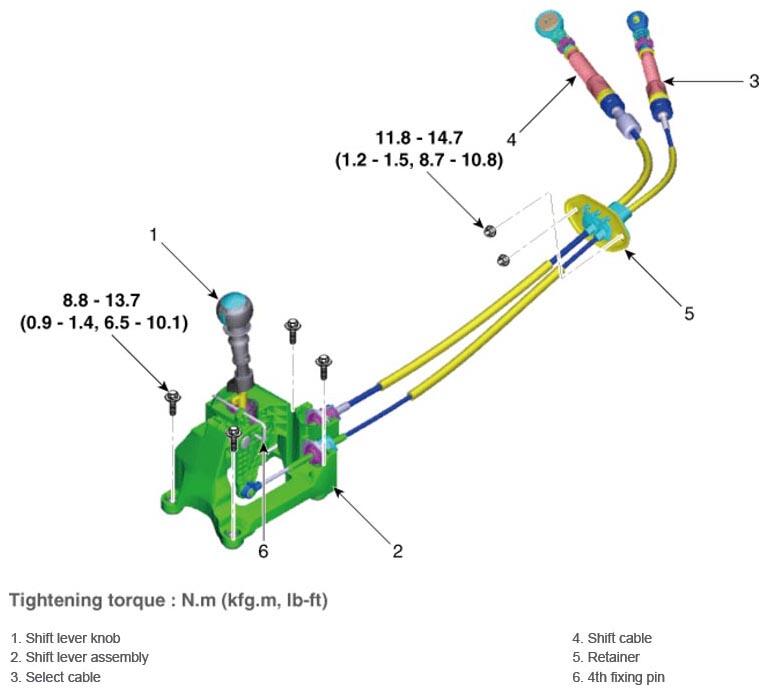

Fig 1: Shift Lever Components Location With Torque Specifications

G16772349

Courtesy of HYUNDAI MOTOR AMERICA
