Terminal Tightening State Inspection
NOTE:
- Alternator B+ terminal state
- Alternator B+ terminal tightening nut
- Battery positive (+) terminal state
- Battery positive (+) terminal tightening nut state
- Battery negative (-) terminal state
- Battery negative (-) terminal tightening nut state
- Battery negative (-) terminal mounting bolt tightening state (Chassis ground)
- Battery sensor negative (-) terminal state (With battery sensor)
- Battery sensor negative (-) terminal tightening nut state (With battery sensor)
- Battery sensor negative (-) terminal mounting bolt tightening state (Chassis ground) [With battery sensor]
- Engine room fuse & relay box positive (+) harness state
- Engine room fuse & relay box positive (+) harness tightening nut state
- Check the status of ground fault by chassis paint

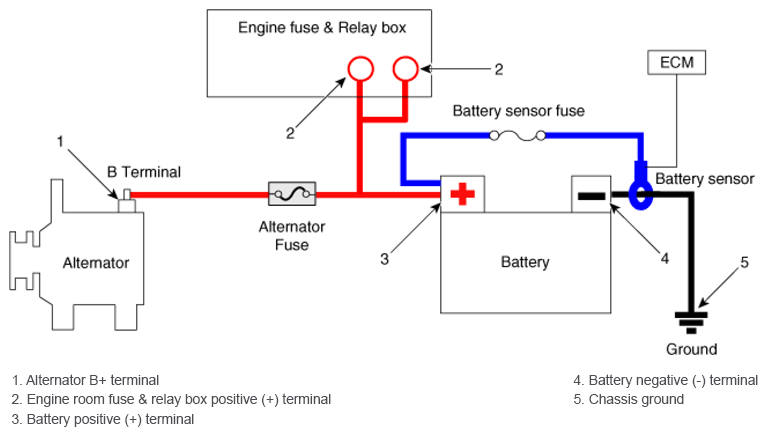

Inspection Component Location
