Battery Tray
- Remove the battery.
(Refer to Charging System - "BATTERY ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the ECM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

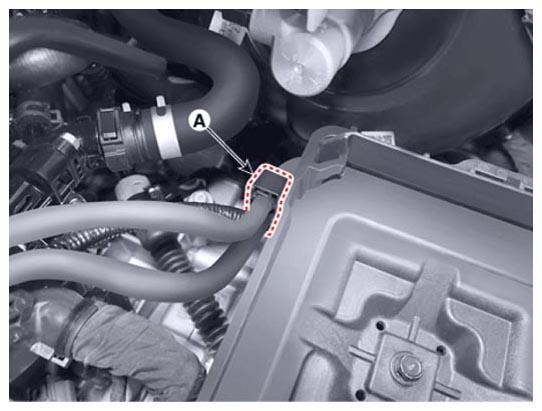

- Remove the clip (A).

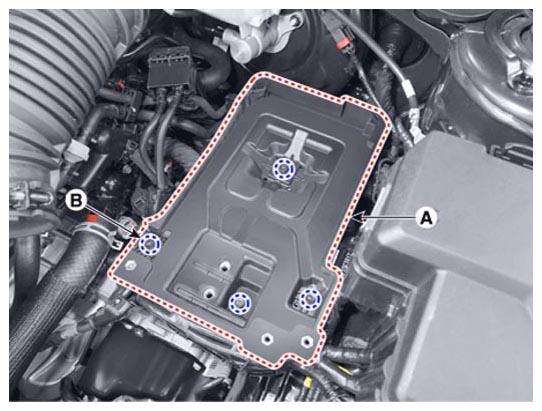

- After loosening the mounting bolts, and remove the battery tray (A).
- Loosening the (+) wiring mounting bolt (B).
Battery tray mounting bolt:
10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)
(+) wiring mounting bolt:
6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb-ft)
