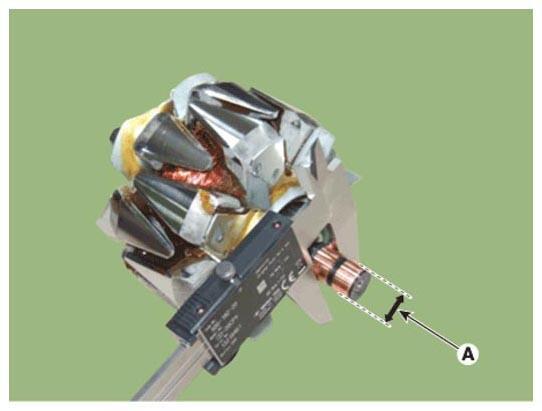

Measure the external diameter (A) of the slip ring.Standard value:
14.4 mm
Standard value for replacement
: 14.0 mm
 Courtesy of HYUNDAI MOTOR AMERICA
|
NOTE:
When you want to remove contamination or smooth the rough area of a slip ring, use a soft sandpaper with #300 - 500.
