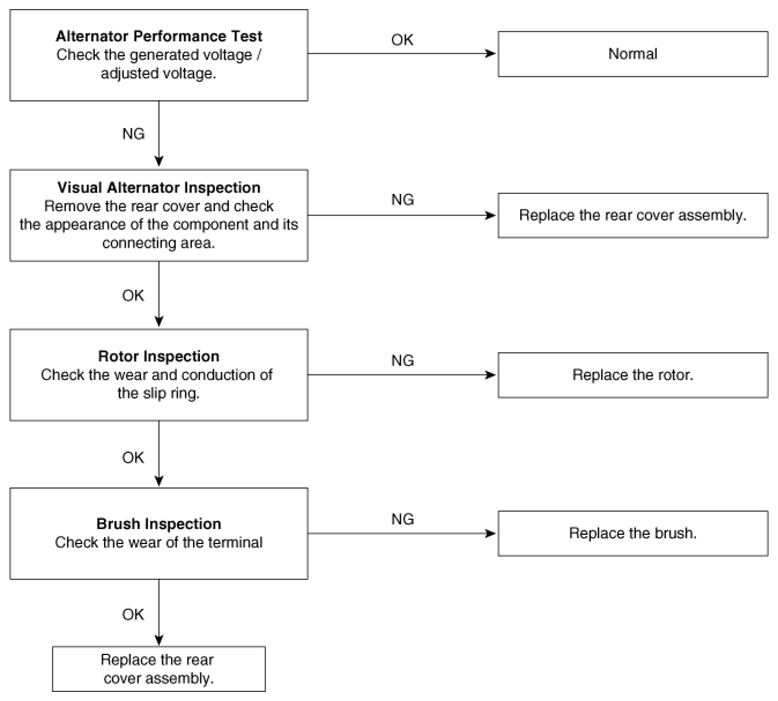

Component Failure Diagnosis
NOTE:
The following troubleshooting procedure uses a dedicated testing equipment to inspect a component that was removed from the vehicle.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
