Brush Inspection

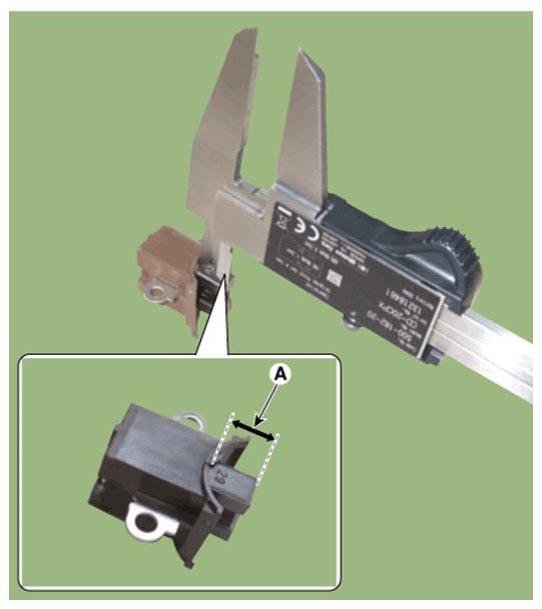

  1. Measure the length (A) of the brush.

    Standard value  : 10.5 mm

    Standard value for replacement  : 8.4 mm

G16771883Courtesy of HYUNDAI MOTOR AMERICA
