Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Disconnect the battery (-) terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

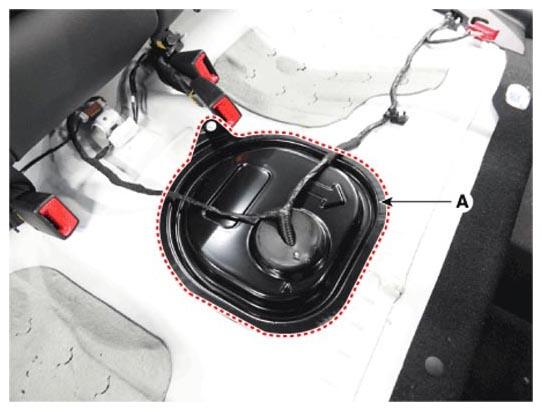

  4. Remove the fuel pump service cover (A).
    G16772163Courtesy of HYUNDAI MOTOR AMERICA

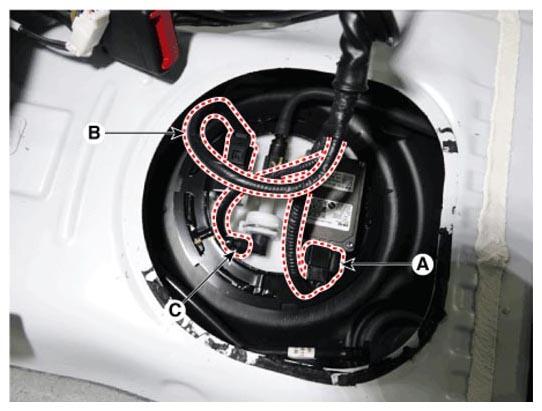

  5. Disconnect the fuel pump control module connector (A).
  6. Disconnect the fuel tank pressure sensor connector (B).
  7. Disconnect the fuel pressure sensor connector (C).
    G16772164Courtesy of HYUNDAI MOTOR AMERICA

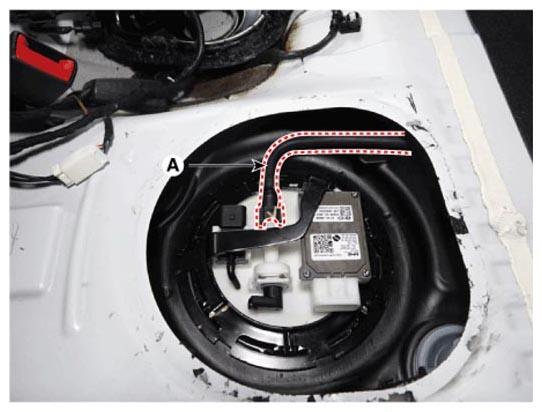

  8. Disconnect the fuel feed tube quick-connector (A).
    G16772165Courtesy of HYUNDAI MOTOR AMERICA

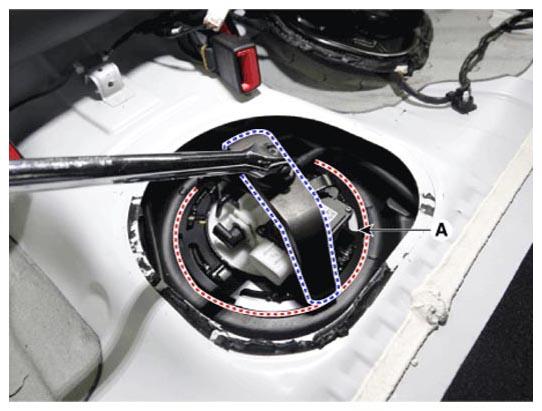

  9. Remove the locking ring (A) by using the special service tool [No.: 09310-B8100].
    NOTE:
    • When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
    • When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
    G16772166Courtesy of HYUNDAI MOTOR AMERICA

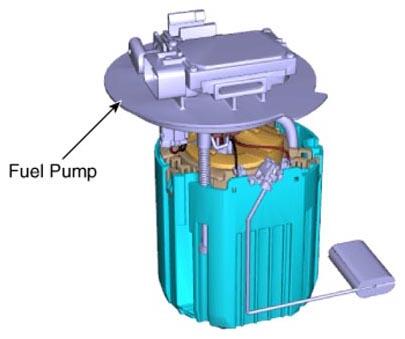

  10. Remove the fuel pump from the fuel tank.
G16772167Courtesy of HYUNDAI MOTOR AMERICA
