Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Disconnect the battery (-) terminal.
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

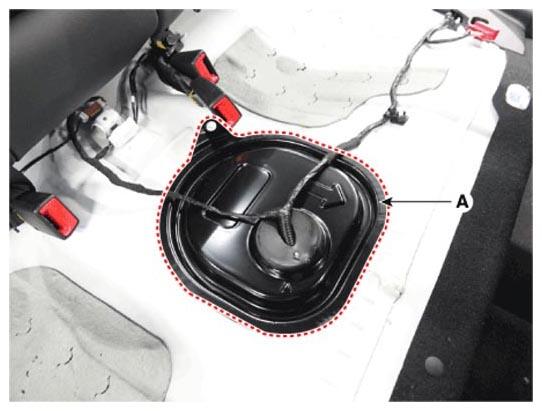

- Remove the fuel pump service cover (A).

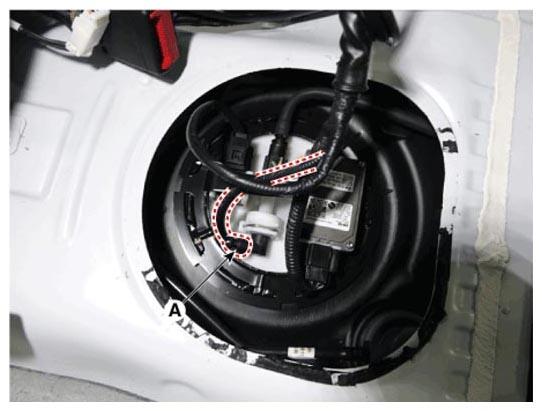

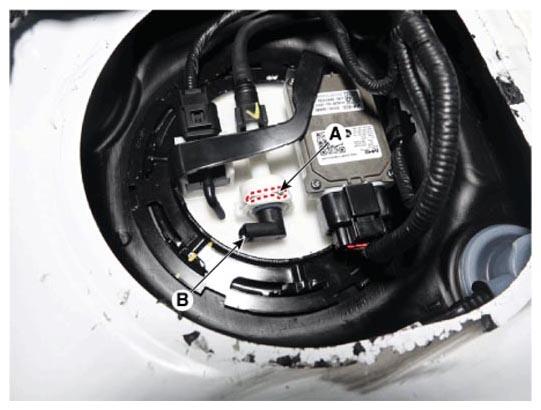

- Disconnect the fuel pressure sensor connector (A).
- Remove the fuel pressure sensor fixing pin (B).
- Remove the fuel pressure sensor from the fuel pump.
