Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Open the fuel filler door.

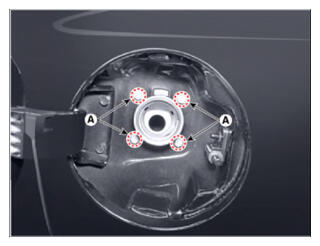

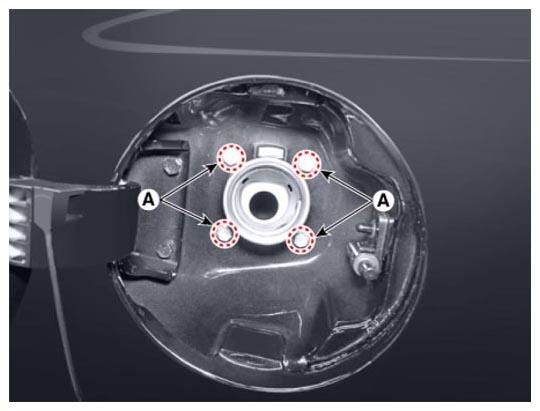

- Remove the filler-neck mounting bolt (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
- Lift the vehicle.
- Remove the rear-LH wheel, tire, and the inner wheel house.

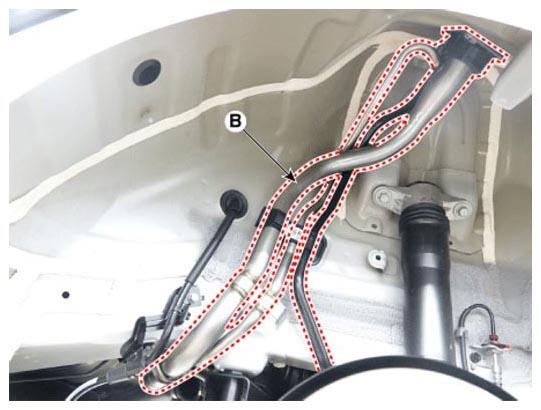

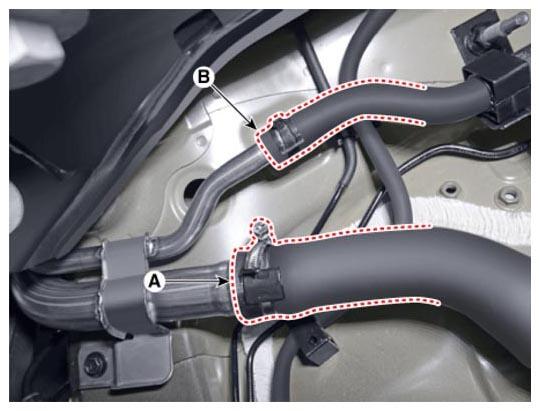

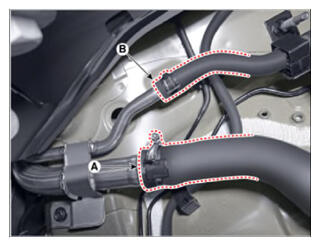

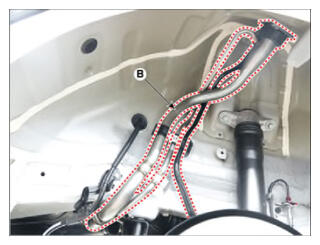

- Disconnect the fuel filler hose (A), leveling hose quick-connector (B).

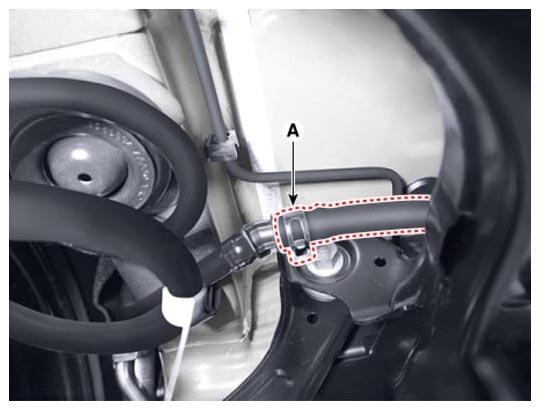

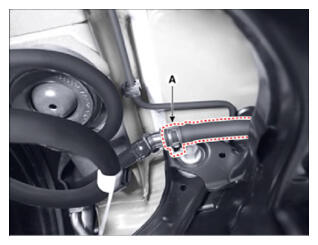

- Disconnect the ventilation hose (A).

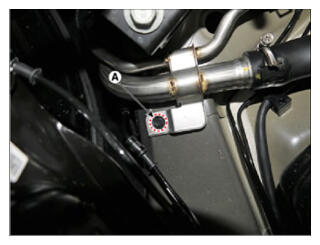

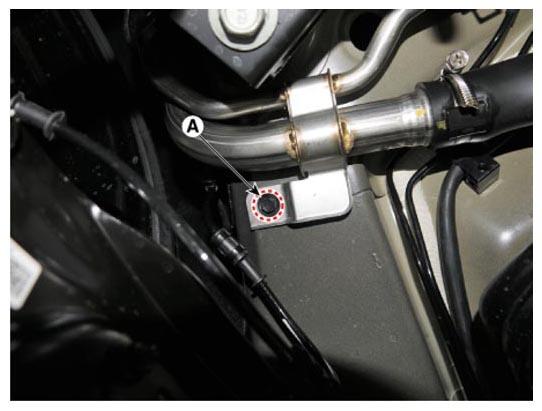

- Remove the filler-neck assembly after loosening the mounting bolt (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
