Repair Procedures: Removal

Disconnect the battery (-) terminal.

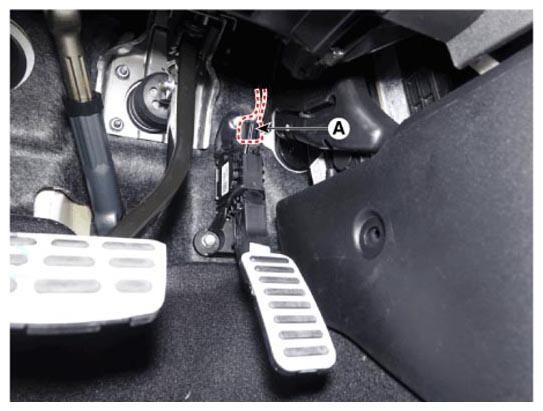

Disconnect the accelerator position sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

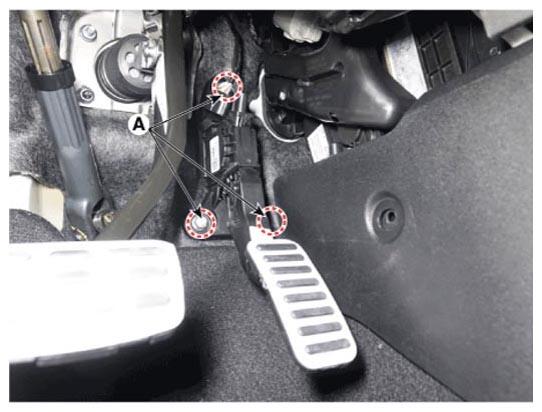

Remove the installation nuts (A) and then remove the accelerator pedal module.
Tightening torque:

12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
