Repair Procedures: Installation

NOTE:

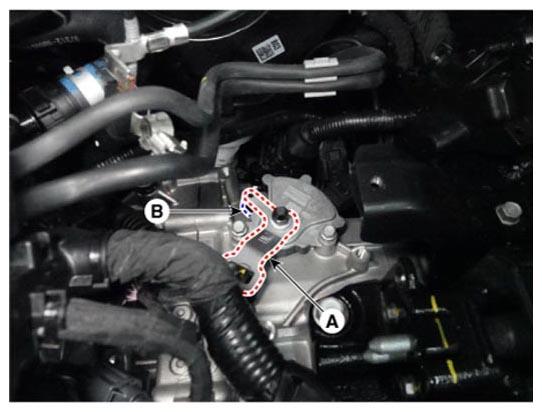

Before installing, align the position switch manual control lever (A) and the "N" position guide (B).

Courtesy of HYUNDAI MOTOR AMERICA

When installing the old shift lever, check the lever is positioned the lever at "N" position.

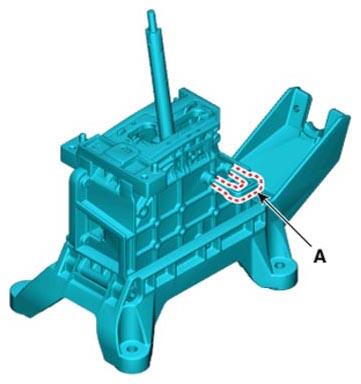

When installing the new shift lever, check the lever is equipped with the "N" position fixed pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

To install, reverse the removal procedure.

CAUTION:

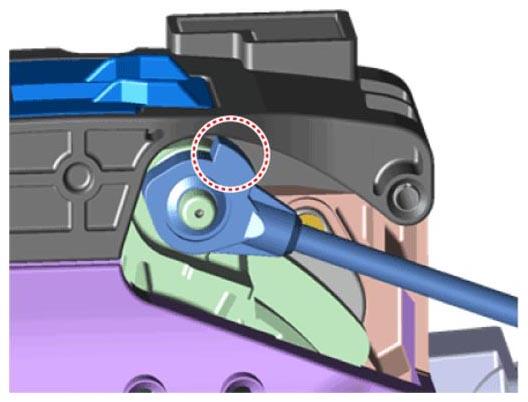

When assembling shift cable, the projection must face upwards.

Courtesy of HYUNDAI MOTOR AMERICA

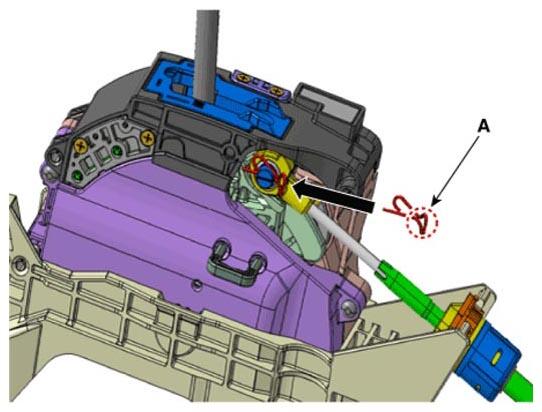

When assembling the snap pin, be careful about the correct direction.

The band portion (A) must point outwards.

Courtesy of HYUNDAI MOTOR AMERICA

When installing the new shift lever, install the shift cable and then remove the "N" position fixed pin (A).

Courtesy of HYUNDAI MOTOR AMERICA
