Repair Procedures: Installation

CAUTION:

Before installing, check the shift lever and manual control lever are positioned at "N" position (A).

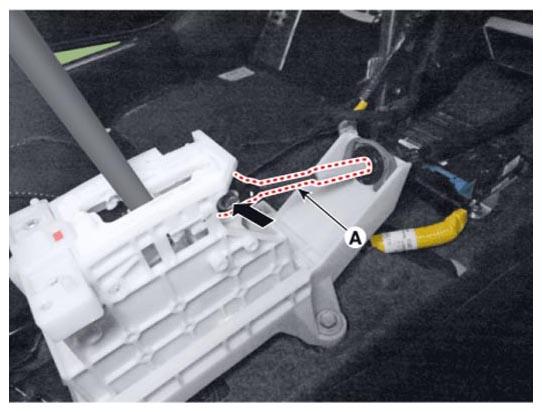

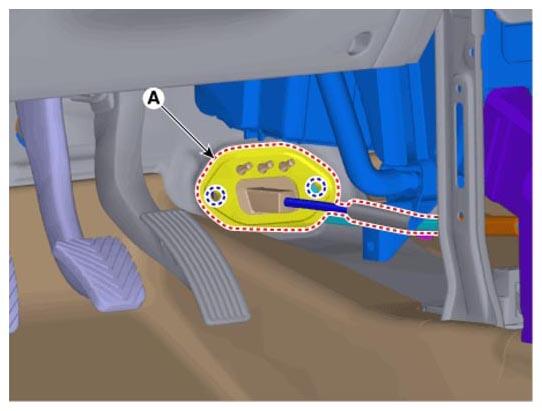

Install the shift cable end (A).

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

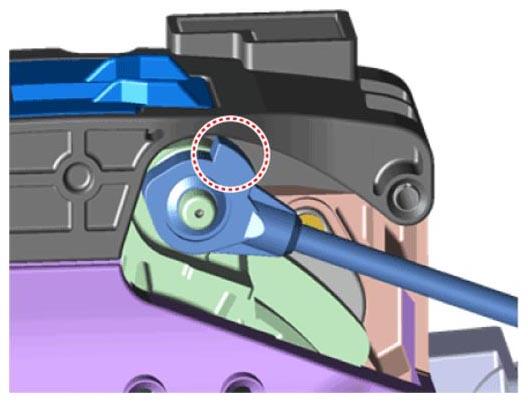

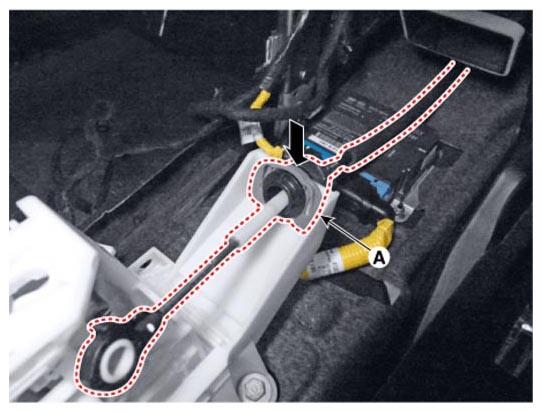

When assembling shift cable, the projection (A) must face upwards.

Courtesy of HYUNDAI MOTOR AMERICA

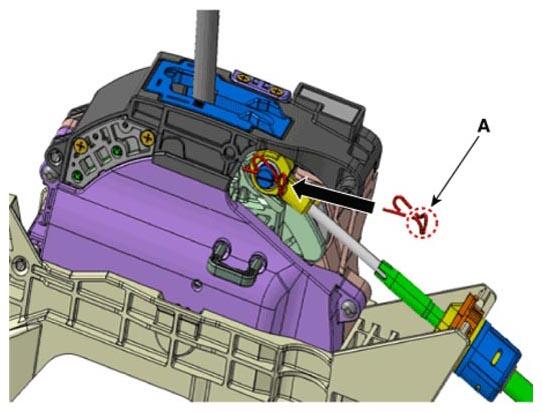

When assembling the snap pin, be careful about the correct direction.

The band portion (A) must point outwards.

Courtesy of HYUNDAI MOTOR AMERICA

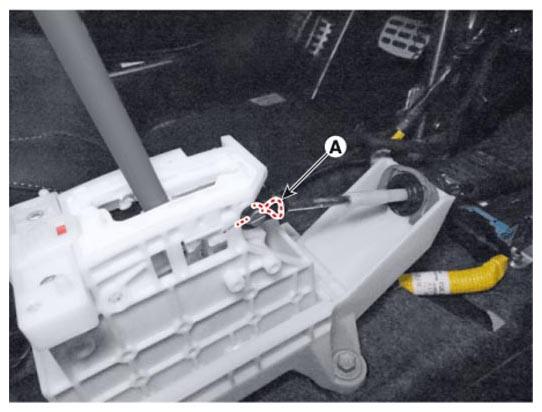

Install the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

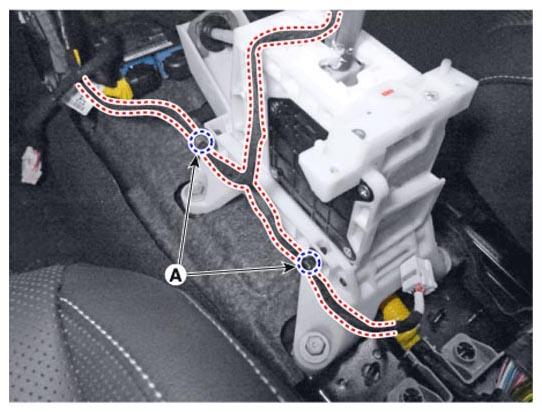

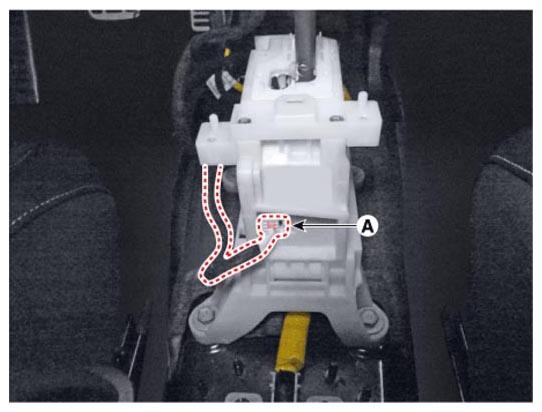

Install the wiring clip (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

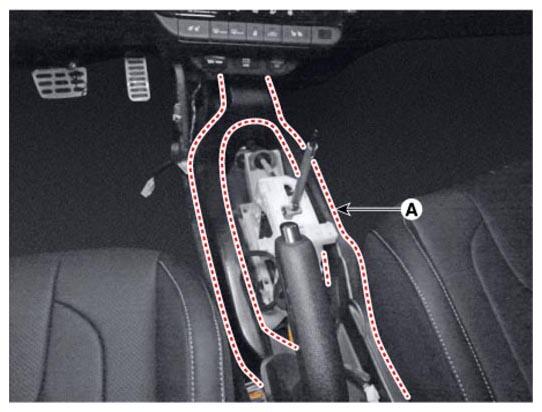

Install the floor console air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

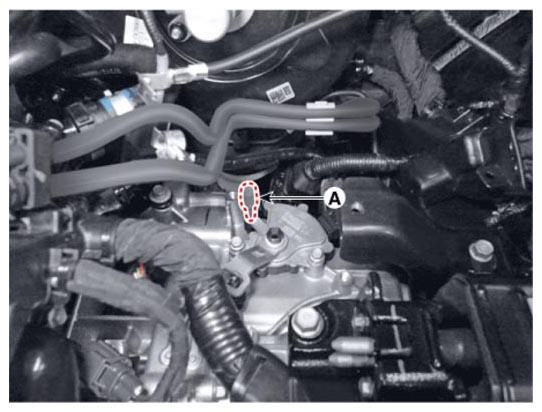

Install the position switch neutral fixed pin (SST No.:09480-A3800) (A) to the aligned hole.

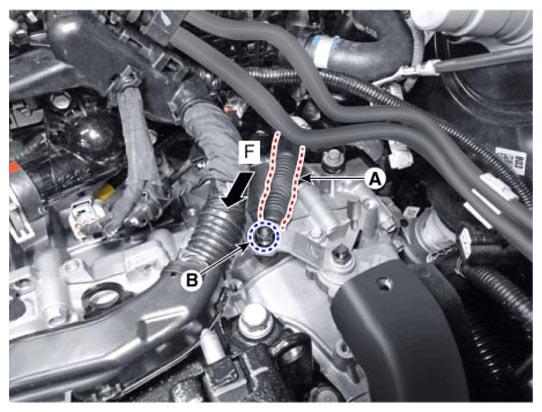

Push shift cable (A) lightly to "F" direction shown to eliminate free play of shift cable. Tighten the nut (B) with the specified torque.
Tightening torque:

9.8 - 14.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

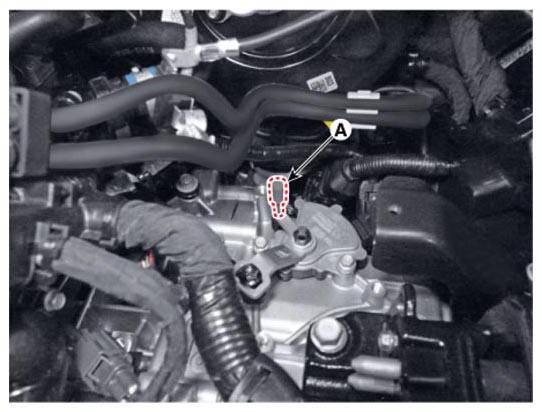

Remove the Insert the position switch neutral fixed pin (SST No..: 09480-A3800) (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the floor console.
(Refer to Body (Interior and Exterior - "FLOOR CONSOLE ")

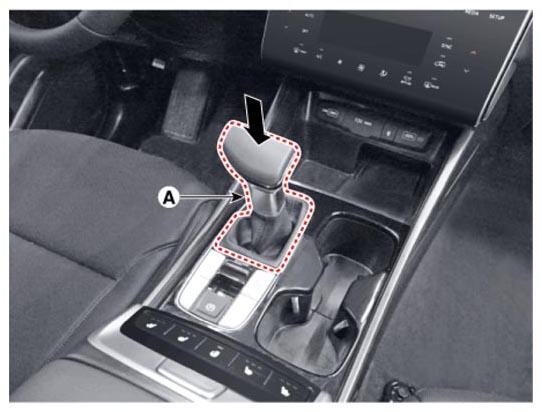

Install the shift lever knob & boots (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the air cleaner assembly and air duct.
CAUTION:
- Check that operating surely at each range of the position switch corresponding to each position of shift lever.
(Refer to Engine Mechanical System - "AIR CLEANER ")
