Repair Procedures: Removal

  1. Move the shift lever to "N".
  2. Turn ignition OFF switch and the disconnect the negative (-) battery terminal.
  3. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

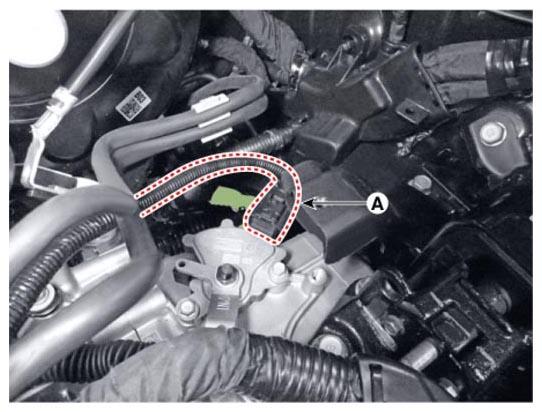

  4. Disconnect the position switch connector (A).
    G16772538Courtesy of HYUNDAI MOTOR AMERICA

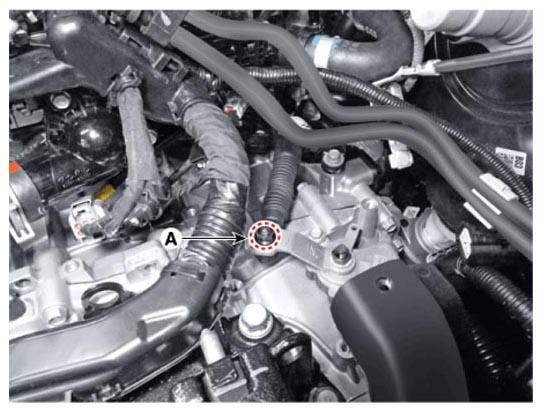

  5. Loosen the nut (A) and then disconnect the shift cable.
    G16772539Courtesy of HYUNDAI MOTOR AMERICA

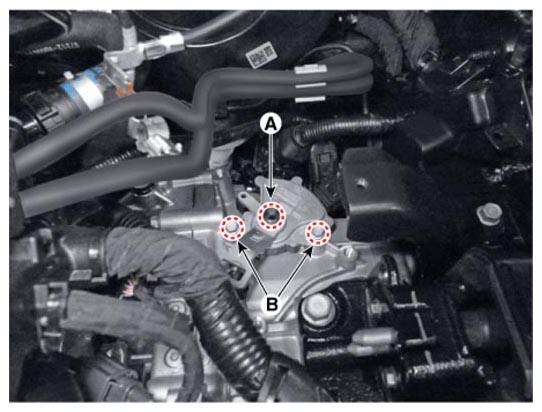

  6. Loosen the nut (A) and then remove the manual lever.
  7. Loosen the bolts (B) and then remove the position switch.
    G16772540Courtesy of HYUNDAI MOTOR AMERICA
