Repair Procedures: Installation

Check that the shift lever is placed in the "N" position.

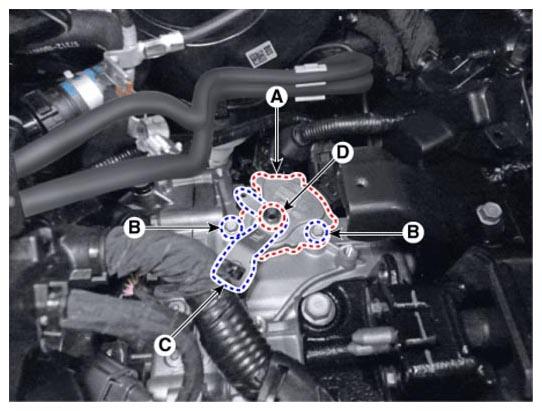

Install the position switch (A) and then lightly tighten the bolts (B).
Align the hole in the position switch and the neutral fixed hole of the manual lever and then install the manual lever (C).

Tighten the manual lever mounting nut (D) with the specified torque.

Tightening torque:

17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

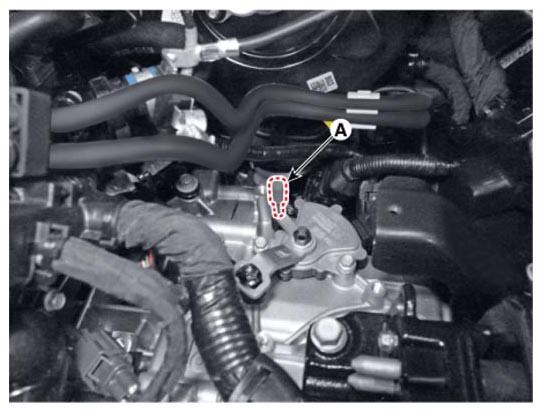

Install the neutral fixed pin (SST.: 09480-A3800) (A) to the neutral fixed hole.

Courtesy of HYUNDAI MOTOR AMERICA

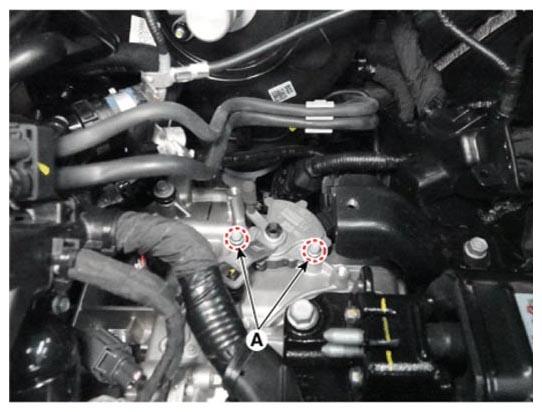

Tighten the position switch mounting bolts (A) with the specified torque.
Tightening torque:
1. 9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

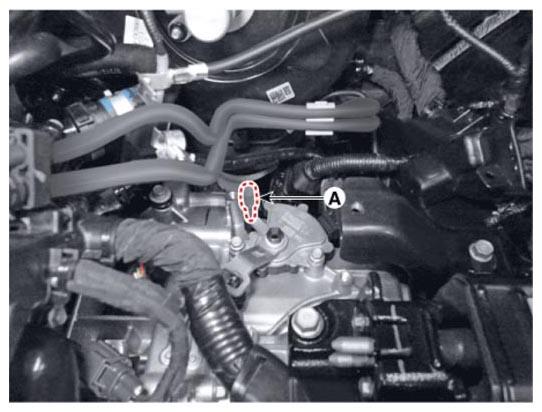

Remove the position switch neutral fixed pin (SST No.: 09480-A3800) (A).

Courtesy of HYUNDAI MOTOR AMERICA

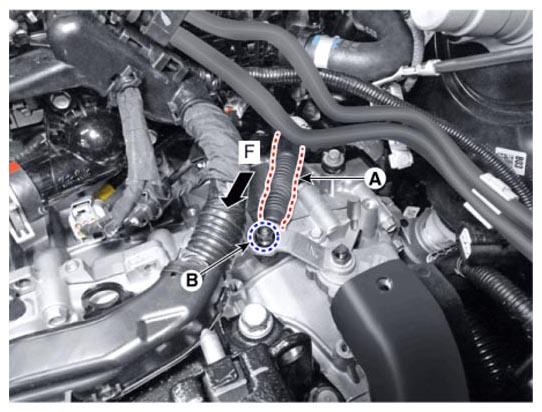

Push shift cable (A) lightly to "F" direction shown to eliminate free play of shift cable. Tighten the nut (B) with the specified torque.
Tightening torque:

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

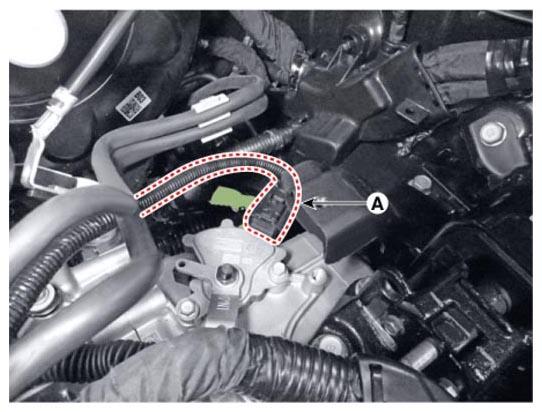

Connect the position switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
CAUTION:
- Check that operating surely at each range of the position switch corresponding to each position of shift lever.
